LNA

Nisshinbo Micro Devices offers Low Noise Amplifiers (LNAs) ideal for various communication applications that frequency range from several 10 MHz to 6 GHz. Their LNAs have advantages such as high gain, low noise figure and low distortion. They also provide Front-End Modules (FEMs) that integrate SAW filter and LNA for GNSS applications.

There are 8 of 48 products shown.

NJG1187KG1

  • Package (LNA): ESON6-G1
  • Operating Voltage [V]: 3.3 V ... 3.3 V
  • Operating Current [mA]: 8 mA
  • Gain typ [dB]: 34; 37; 36
  • NF typ [dB]: 0,6; 0,65; 0,65
  • P-1dB typ [dBm]: +13(out); +12(out); +12(out)
  • IIP3 typ [dBm]: +17(OIP3); +19/+20(OIP3); +20(OIP3)
  • Manufacturer: Nisshinbo
NJG1187KG1

NJG1188KG1

  • Package (LNA): ESON6-G1
  • Operating Voltage [V]: 3.3 V ... 3.3 V
  • Operating Current [mA]: 40 mA
  • Gain typ [dB]: 16
  • NF typ [dB]: 2,5
  • P-1dB typ [dBm]: 1
  • IIP3 typ [dBm]: 15
  • Manufacturer: Nisshinbo
NJG1188KG1

NJG1730MD7

  • Package (LNA): EQFN14-D7
  • Operating Voltage [V]: 3.6 V ... 3.6 V
  • Operating Current [mA]: 10 mA
  • Gain typ [dB]: 15
  • NF typ [dB]: 1,6
  • P-1dB typ [dBm]: -4
  • IIP3 typ [dBm]: 7
  • Manufacturer: Nisshinbo
NJG1730MD7

NJG1739K51

  • Package (LNA): QFN12-51
  • Operating Voltage [V]: 3.6 V ... 3.6 V
  • Operating Current [mA]: 8 mA
  • Gain typ [dB]: 12
  • NF typ [dB]: 2,5
  • IIP3 typ [dBm]: 9
  • Manufacturer: Nisshinbo
NJG1739K51

NJG1740MHH

  • Package (LNA): EQFN26-HH
  • Operating Voltage [V]: 5 V ... 5 V
  • Operating Current [mA]: 40 mA
  • Gain typ [dB]: 18
  • NF typ [dB]: 0,9
  • IIP3 typ [dBm]: -5
  • Manufacturer: Nisshinbo
NJG1740MHH

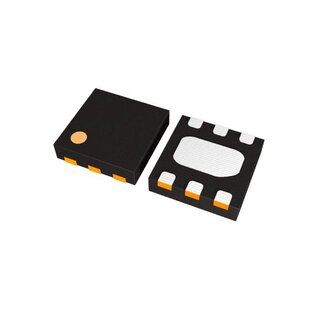

NT1189GDAE3S

  • Package (LNA): DFN1616-6-GD
  • Operating Voltage [V]: 5 V ... 5 V
  • Operating Current [mA]: 50 mA
  • Gain typ [dB]: 26; 21
  • NF typ [dB]: 0,48; 0,63
  • P-1dB typ [dBm]: +19(out)
  • IIP3 typ [dBm]: +37(OIP3)
  • Manufacturer: Nisshinbo
NT1189GDAE3S

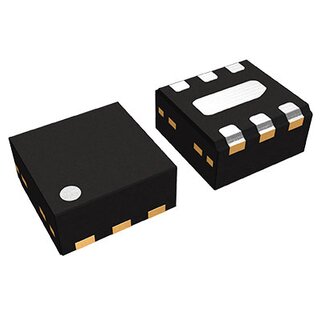

NT1191GEAE3S

  • Package (LNA): DFN1616-6-GE
  • Frequency Range [MHz]: 1176
  • Operating Voltage [V]: 1.8 V ... 3.3 V
  • Operating Current [mA]: 3.5 mA
  • Gain typ [dB]: 17,5/16,0
  • NF typ [dB]: 0,75/0,85
  • P-1dB typ [dBm]: -10/-16
  • IIP3 typ [dBm]: 0/-6
  • Manufacturer: Nisshinbo
NT1191GEAE3S

NT1192FAAE1S

  • Package (LNA): EPFFP6-FA
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3.5 mA
  • Gain typ [dB]: 20/19,5; 20/19,5; 19.5/19
  • NF typ [dB]: 0,7/0,75
  • P-1dB typ [dBm]: -13,5/-17; -13/-17; -13,5/-16
  • IIP3 typ [dBm]: -2/-5,5;'-2/-5,5;'-2/-5
  • Manufacturer: Nisshinbo
NT1192FAAE1S
