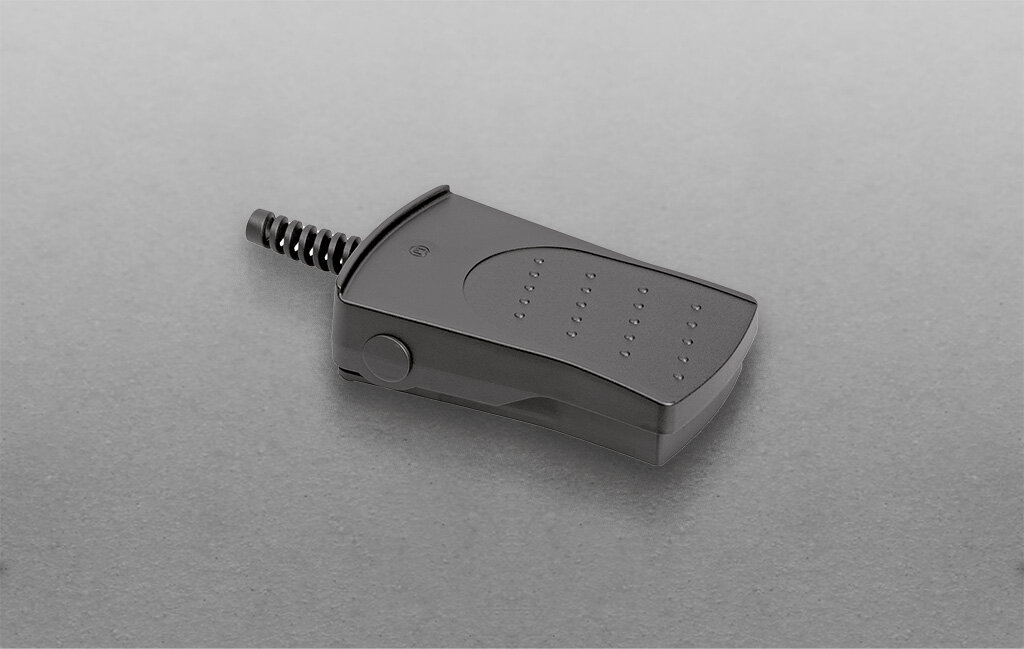

Foot Switches

Suitable for harsh environments
High level of safety and reliability
Ergonomical and robust
Wide rating range
Highly flexible
Attractive, flexible design

PRODUCT FEATURES:

  • Protected against dust and water IP 65 / IP 67
  • Snap-action switching system, tried and tested a million times
  • Compact design with clearly discernable tactile feedback,
    robust and anti-slip, screw holes for fixing to the floor (optional)
  • Versions for low DC signal currents, up to ratings of 16 A 250 V AC
  • Wide range of switching functions, with and without cables
  • Modern switch design, rocker available in different colors, can be printed to customer specifications

There are 4 of 4 products shown.

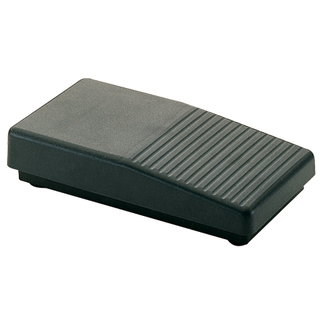

Q2410.0301

  • Switching function: SPNO
  • Connection type: screw
  • Number of poles: 1
  • Rating IEC: 6 (2.5) A 250 V AC 5E4
  • Manufacturer: Marquardt GmBH
Q2410.0301

Q2410.0401

  • Switching function: SPDT
  • Connection type: screw
  • Number of poles: 1
  • Rating IEC: 6 (2.5) A 250 V AC 5E4
  • Manufacturer: Marquardt GmBH
Q2410.0401

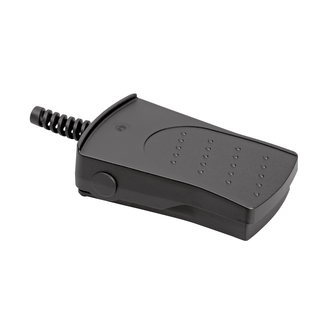

Q2420.0101

  • Switching function: SPNO
  • Connection type: screw
  • Number of poles: 1
  • Rating IEC: 14 (4) A 250 V AC 5E4
  • Manufacturer: Marquardt GmBH
Q2420.0101

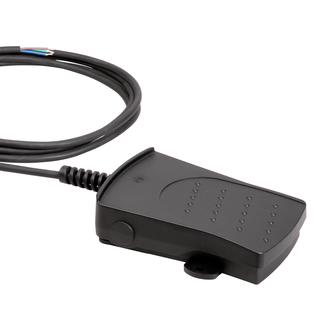

Q2420.4101

  • Switching function: SPNO
  • Connection type: assembled with wire end ferrule 3000 long nickel-plated
  • Number of poles: 1
  • Rating IEC: 14 (4) A 250 V AC 5E4
  • Manufacturer: Marquardt GmBH
Q2420.4101
Switching Function

Connection Type

Rating IEC

Number of Poles

Protection Class

Contact
