Radar Sensors

RADAR is the abbreviation for RAdio Detection And Ranging (freely translated as "radio-based detection and ranging"), but is now also known as Radio Aircraft Detection And Ranging (freely translated as "radio-based aircraft detection and ranging") and is the name for various detection and tracking methods and devices based on electromagnetic waves in the radio frequency range (radio waves). Radar technology enables the detection of suitable objects and persons using radio waves that are harmless to health. The technology is insensitive to interference such as light, dust, smoke, fog, darkening and other environmental impacts.

There are 10 of 43 products shown.

OPS241-A Doppler Radar Sensor

  • min. Detection range person [m]: 10 m
  • min. Detection range car [m]: 25 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 78 °
  • Opening angle horizontal [°]: 78 °
  • Manufacturer: OmniPreSense
OPS241-A Doppler Radar Sensor

OPS242-A Doppler Radar Sensor

  • min. Detection range person [m]: 10 m
  • min. Detection range car [m]: 25 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 76 °
  • Opening angle horizontal [°]: 78 °
  • Manufacturer: OmniPreSense
OPS242-A Doppler Radar Sensor

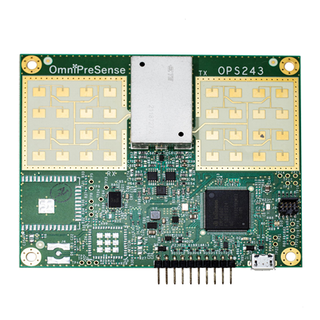

OPS243-A Doppler Radar Sensor

  • min. Detection range person [m]: 15 m
  • min. Detection range car [m]: 80 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: no
  • Opening angle vertical [°]: 24 °
  • Opening angle horizontal [°]: 20 °
  • Manufacturer: OmniPreSense
OPS243-A Doppler Radar Sensor

RFA1 Radar activator

  • min. Detection range person [m]: 10 m
  • min. Detection range car [m]: 20 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 34 °
  • Manufacturer: RFbeam
RFA1 Radar activator

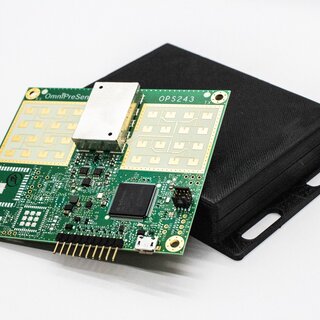

OPS243-C FMCW and Doppler Radar Sensor

  • min. Detection range person [m]: 15 m
  • min. Detection range car [m]: 80 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: no
  • Opening angle vertical [°]: 24 °
  • Opening angle horizontal [°]: 20 °
  • Manufacturer: OmniPreSense
OPS243-C FMCW and Doppler Radar Sensor

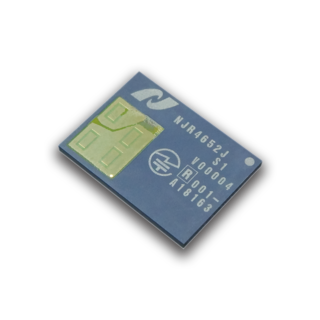

NJR4652F2S2 Entrance Counter

  • min. Detection range person [m]: 1.6 m
  • Movement: yes
  • Direction: yes
  • Speed: no
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 45 °
  • Opening angle horizontal [°]: 45 °
  • Manufacturer: Nisshinbo
NJR4652F2S2 Entrance Counter

NJR4266F2C1 Motion Detector

  • min. Detection range person [m]: 14 m
  • Movement: yes
  • Direction: no
  • Speed: no
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 28 °
  • Manufacturer: Nisshinbo
NJR4266F2C1 Motion Detector

NJR4266F2A1 Motion Detector

  • min. Detection range person [m]: 7 m
  • Movement: yes
  • Direction: no
  • Speed: no
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 80 °
  • Manufacturer: Nisshinbo
NJR4266F2A1 Motion Detector

NJR4266F2A2 Motion Detector

  • min. Detection range person [m]: 7 m
  • Movement: yes
  • Direction: no
  • Speed: no
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 80 °
  • Manufacturer: Nisshinbo
NJR4266F2A2 Motion Detector

NJR4266F2B1 Motion Detector

  • min. Detection range person [m]: 10 m
  • Movement: yes
  • Direction: no
  • Speed: no
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 50 °
  • Manufacturer: Nisshinbo
NJR4266F2B1 Motion Detector
Min. Detect. Range Person [m]

Min. Detect. Range Car [m]

Movement

Speed

Distance

Angle

Opening angle vertical [°]

Opening angle horizontal [°]
