Radar Sensors

RADAR is the abbreviation for RAdio Detection And Ranging (freely translated as "radio-based detection and ranging"), but is now also known as Radio Aircraft Detection And Ranging (freely translated as "radio-based aircraft detection and ranging") and is the name for various detection and tracking methods and devices based on electromagnetic waves in the radio frequency range (radio waves). Radar technology enables the detection of suitable objects and persons using radio waves that are harmless to health. The technology is insensitive to interference such as light, dust, smoke, fog, darkening and other environmental impacts.

There are 10 of 43 products shown.

K-MD2 Engineering sample

  • min. Detection range person [m]: 50 m
  • min. Detection range car [m]: 200 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: yes
  • Opening angle vertical [°]: 30 °
  • Opening angle horizontal [°]: 21 °
  • Manufacturer: RFbeam
K-MD2 Engineering sample

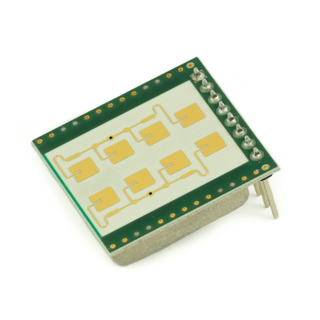

K-LD2 Evaluation kit

  • min. Detection range person [m]: 15 m
  • min. Detection range car [m]: 30 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 34 °
  • Manufacturer: RFbeam
K-LD2 Evaluation kit

K-LD7 Evaluation kit

  • min. Detection range person [m]: 15 m
  • min. Detection range car [m]: 30 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: yes
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 34 °
  • Manufacturer: RFbeam
K-LD7 Evaluation kit

K-MD7 Evaluation kit

  • min. Detection range person [m]: 50 m
  • min. Detection range car [m]: 150 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: yes
  • Opening angle vertical [°]: 34 °
  • Opening angle horizontal [°]: 30 °
  • Manufacturer: RFbeam
K-MD7 Evaluation kit

RSP1 Evaluation Kit

  • min. Detection range person [m]: 15 m
  • min. Detection range car [m]: 30 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 34 °
  • Manufacturer: RFbeam
RSP1 Evaluation Kit

V-LD1 Evaluation kit

  • Movement: no
  • Direction: no
  • Speed: no
  • Distance: yes
  • Angle: no
  • Opening angle vertical [°]: 8 °
  • Opening angle horizontal [°]: 8 °
  • Manufacturer: RFbeam
V-LD1 Evaluation kit

K-HC1 Superhet transceiver

  • min. Detection range person [m]: 210 m
  • min. Detection range car [m]: 560 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: no
  • Angle: no
  • Opening angle vertical [°]: 25 °
  • Opening angle horizontal [°]: 12 °
  • Manufacturer: RFbeam
K-HC1 Superhet transceiver

K-LC5 Radar transceiver

  • min. Detection range person [m]: 15 m
  • min. Detection range car [m]: 40 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 34 °
  • Manufacturer: RFbeam
K-LC5 Radar transceiver

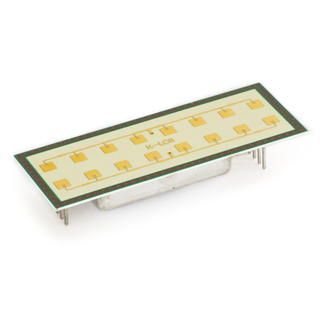

K-LC6 Radar transceiver

  • min. Detection range person [m]: 24 m
  • min. Detection range car [m]: 62 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: no
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 12 °
  • Manufacturer: RFbeam
K-LC6 Radar transceiver

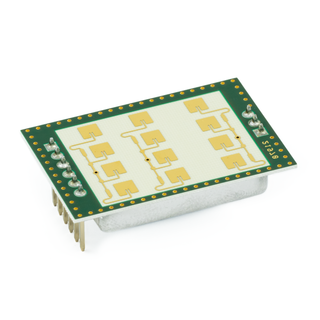

K-LC7 Radar transceiver

  • min. Detection range person [m]: 8 m
  • min. Detection range car [m]: 22 m
  • Movement: yes
  • Direction: yes
  • Speed: yes
  • Distance: yes
  • Angle: yes
  • Opening angle vertical [°]: 80 °
  • Opening angle horizontal [°]: 34 °
  • Manufacturer: RFbeam
K-LC7 Radar transceiver
Min. Detect. Range Person [m]

Min. Detect. Range Car [m]

Movement

Speed

Distance

Angle

Opening angle vertical [°]

Opening angle horizontal [°]
