Receiver

Overview of the advantages of Receiver:

Sound Quality:

  • membrane active transformation itself (direct conversion), self-moving without coil assembly
  • high resolution for mid-high frequence play
  • to have wide band function by ACTS/dynamic combination



Structur:

  • sequential laminated structur (similar like ECM)
  • balanced structure between permanent magnet and up and down coil



There are 2 of 2 products shown.

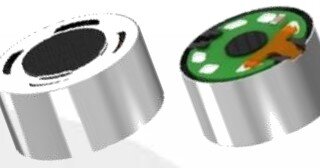

SR080655EP01N3L

  • Diameter [mm]: 8 mm
  • Height [mm]: 5.5 mm
  • Impedance [Ω]: 15 Ω
  • Rated Input Power [mW]: 3 mW
  • Sensitivity [dB]: 93.2 dB
  • Frequency [Hz]: 20 Hz ... 20,000 Hz
  • Maximum Input Power [mW]: 25 mW
  • Manufacturer: BSE
SR080655EP01N3L

SR106560EP01N

  • Diameter [mm]: 10 mm
  • Height [mm]: 6 mm
  • Impedance [Ω]: 15 Ω
  • Rated Input Power [mW]: 5 mW
  • Sensitivity [dB]: 95 dB
  • Frequency [Hz]: 20 Hz ... 20,000 Hz
  • Maximum Input Power [mW]: 25 mW
  • Manufacturer: BSE
SR106560EP01N
Diameter [mm]

Height [mm]

Impedance [?]

Rated Input Power [mW]

Sensitivity [dB]

Frequency [Hz]

Maximum Input Power [mW]
