EIOT-UNOD-MESH-NC868-CR123

This module has been developed for offering continuous monitoring of the AC power existence of an electric device, It also reports the own battery voltage level. The onboard NeoCortec radio module enables using the nodes in an ad-hoc, subGHz local WLAN mesh. Data can be collected and transmitted with predefined frequency. The nodes are powered from CR123A lithium battery and can operate for years without battery replacement. Large number of devices can be organized to a mesh network with a distance between nodes up to 100-200 meters (outside) and 10-15m indoor.

Functions

• NeoMesh WLAN technology
• 868 MHz (SubGHz) Mesh module for EU operation / 915 MHz for Americas

Multiple Sensors on board for:

• Ambientlight
• Magnetic
• Temperature (external probe)
• Humidity
• Monitoring AC power

Suggested application area

• Refrigerators, freezers
• Predictive maintenance
• Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
• Tracking tasks
• Large battery-operated smart sensor networks in cities, buildings, hotels etc. networks in cities, buildings, hotels etc.



EIOT-ANOD-MESH-NC868-CR123

This module has been developed for collecting environmental data such as temperature, visible light intensity, offers own battery voltage monitoring and is able to count magnetic pulses (e.g. for door open counter). The onboard NeoCortec radio module provides with using the nodes in an ad-hoc, subGHz local WLAN mesh. Data can be collected and transmitted with predefined frequency towards the gateway. The nodes are powered from CR123A lithium battery and can operate for years without battery replacement. Large number of devices can be organized to a mesh network with a distance between nodes up to 100-200 meters (outside) and 10-15m indoor.

Functions

• NeoMesh WLAN technology
• 868 MHz (SubGHz) Mesh module for EU operation / 915 MHz for Americas

Multiple sensors on board for:

• Ambientlight
• Magnetic
• Noise
• Acceleration/Gyro
• Temperature Sensor (external probe)
• Humidity

Suggested application area

• Refrigerators, freezers
• Predictive maintenance
• Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
• Tracking tasks
• Large battery-operated smart sensor networks in cities, buildings, hotels etc. networks in cities, buildings, hotels etc.

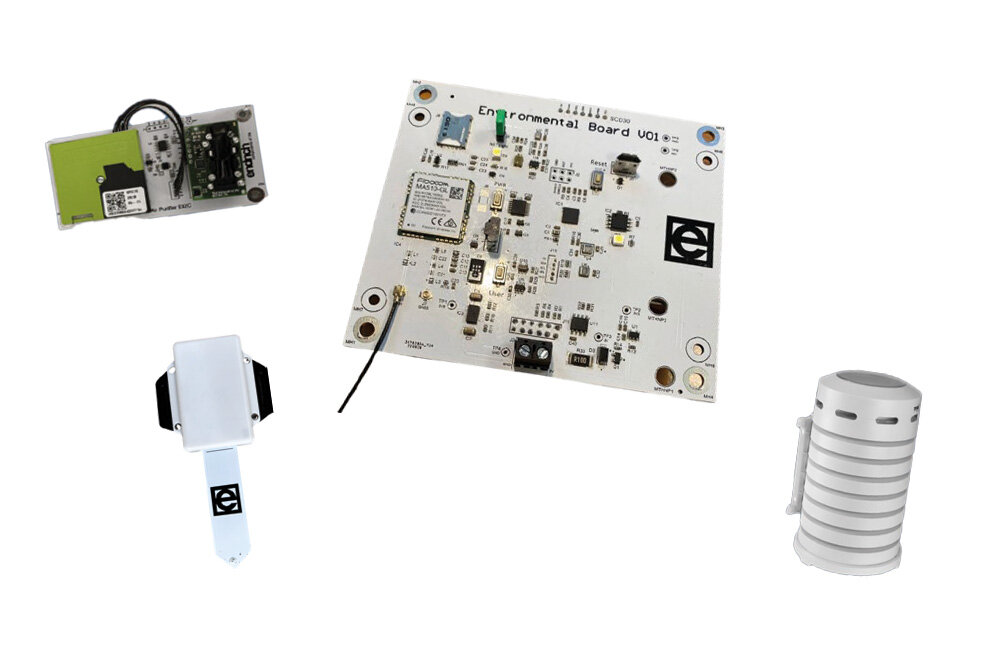

CityBox – air quality monitoring device, which also acts as a gateway for the surrounding NeoMesh / LoraMesh smart Sensor network, such as soil moisture Sensors, External air quality and CO2 Sensor unit

EIOT-CN868GW-LTE-S7672-USB

This module has been developed for collecting and transmitting data arriving from the NeoCortec module based local mesh WLAN to the (E-)Cloud. Data can be collected and transmitted in a relatively small time-interval as being powered from mains (5V USB). The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the (E-)Cloud together with the sensor nodes’ data via the LTE cellular network. In case there is a need of a more precise (outdoor only)  geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating.

Functions

• Cellular communication CAT1-BIS (4G/LTE)
• In-  and Outdoor localization with GPS and LBS
• 868 MHz (SubGHz) mesh module for EU operation / 915 MHz for Americas
• Direct E-Cloud integration (PP)

Suggested application area

• Refrigerators, freezers
• Predictive maintenance
• Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
• Tracking tasks
• Large battery-operated smart sensor networks in cities, buildings, hotels etc.

EIOT-PPSB-LPWA-S7080-USBLION

Cellular Data Transmitter Module with back up battery
This module has been developed for collecting and transmitting environmental data such as temperature, humidity, acceleration, gyro, light intensity, magnetic field, noise level in a short interval as being powered from mains. The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the E-Cloud together with the sensor data via the LPWA cellular network. In case there is a need of a more precise (outdoor only)  geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating. The module detects power shortage due to power failure or disconnecting the device, and automatically enters to backup battery mode, sending alert messages.

Functions

• Cellular communication via NB-IoT/LTE-M
• Indoor and outdoor localization via LBS and GNSS
• Back up LI-ION battery

Multiple sensors on board for:

• Ambientlight
• Magnetic
• Noise
• Acceleration/Gyro
• Temperature
• Humidity

Suggested application area

• Refrigerators, freezers (with internal installation)
• Predictive maintenance
• Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
• Tracking tasks

EIOT-PPSB-LPWA S7080-ERSPC

Cellular Data Transmitter Module with backup ER battery
This module has been developed for collecting and transmitting environmental data such as temperature, humidity, acceleration, gyro, light intensity, magnetic field, noise level for also using on very low temperatures. It is possible to detect and send data in a short interval as being powered from mains. The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the E-Cloud together with the sensor data via the LPWA cellular network. In case there is a need of a more precise (outdoor only) geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating. The module detects power shortage due to power failure or disconnecting the device, and automatically enters to backup battery mode, sending alert messages. With the Cellular Data Transmitter device, you can enjoy the advantages of daily data gathering and instant notifications.

Functions

• Cellular Data Transmitter Module with backup ER battery
• In- and Outdoor localization  with GPS and LBS
  Back up battery

Multiple Sensors on board for

• Ambientlight
• Magnetic
• Noise
• Acceleration/Gyro
• Temperature
• Humidity

Suggested application area

• Refrigerators, freezers (with internal installation)
• Predictive maintenance
• Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
• Tracking tasks
