embedded world

NXP i.MX93 with Windows on ARM (Win 11 IoT)

PicoCore i.MX93
​​

  • i.MX93 (Dual-Core), ​

  • NPU: ETHOS U65​​

  • 1GB LPDDR4, 16GB eMMC, ​2MB NOR-Flash​​

  • 1x Gbit/Ethernet​​

  • WIFI 6, BT 5.2
    ​​

Displays & embedded systems

Touch-Monitor

15.6“ Touch-Monitor

  • Size 15.6“, IPS-technology
  • Resolution 1.920 x 1.080
  • Brightness 500 cd/m², contrast 1.000:1
  • PCAP optically bonded
  • Interfaces DisplayPort 1.2 / HDMI 1.4
    and USB-C for touch
  • Full aluminum housing
  • Designed for 24/7 operation
  • Designed for medical and Industrial applications
  • CE and FCC certified
  • UL796, rated V-0



Touch-Monitor

Touch-PC (ARM)

5“ Touch-PC (ARM)

  • Size 5.0“, IPS-technology
  • i.MX8M Plus (Quad-Core), 2GB RAM
  • 8GB eMMC, 2MB NOR-Flash
  • Resolution 850 x 480
  • Brightness 550cd/m², contrast 1.000:1
  • PCAP optically bonded (Microchip mXT640U)
  • Interfaces: USB-A, I/O connector, 2x Gbit/Ethernet
  • Full aluminum housing
  • Designed for 24/7 operation
  • Designed for medical and industrial applications
  • CE and FCC certified



Touch-PC

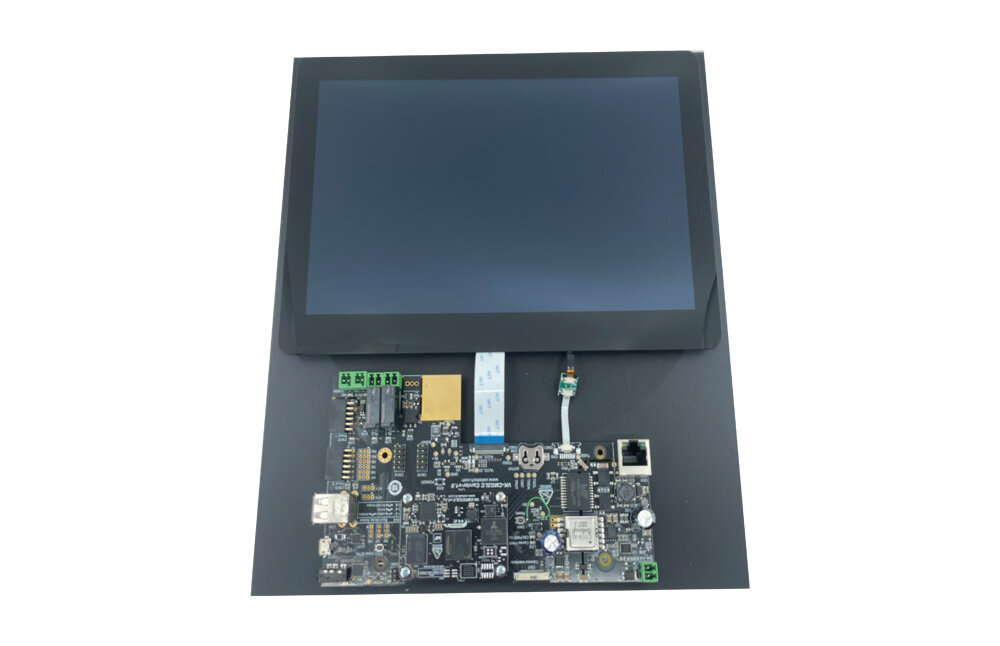

Evaluation Kit Dual ARM Cortex-A55 &-M33

R9A07G044C22GBG

  • 1.2GHz, 361pins BGA, Fanless
  • On board RAM: 512MB up to 2GB DDR4, 1.6GHz
  • On board ROM

    (16 up to 64) MB QSPI, 133MHz, NOR Flash
    (8 up to 128) GB - eMMC, 200MHz, NAND Flash

  • WiFi + BLE: Module Murata Type 1YN
  • Ethernet: 1x PHY RTL8211F
  • Operating temperature: -40° ... +85°
  • Dimensions: 40 mm x 55 mm

VK-CMG2LC Development Carrier Board

  • ​PoE RTC Battery holder
  • uUSB type B (system TTY), uSD Card Holder
  • Audio (3.5mm CTIA), 2x USB type A, 2x PMODs,2x RS232
  • RS485 (galvanically isolated)
  • 2x Digital Inputs (both DI galvanically isolated through optocouplers)
  • 2x Digital Outputs (both DO galvanically isolated through relays 5A/250V AC)
  • MIPI DSI FPC, MIPI CSI FPC



Displays & Embedded Systems

Touch-Monitor

10.1“ Touch-Monitor

  • Size 10.1“, IPS-technology
  • Resolution 1.280 x 800
  • Brightness 550 cd/m², Contrast 800:1
  • PCAP optically bonded
  • Interfaces DisplayPort 1.2 / HDMI 1.4 and USB-C for touch
  • Open frame, aluminum housing
  • Designed for 24/7 operation
  • Designed for medical and Industrial applications
  • CE and FCC certified
  • UL796, Rated V-0



Touch-Monitor

Active Components

Gigadevice GD-xD-W515-EVAL

The xD (Multidimension) series evaluation platform utilizes Multiple GD products, provides possibility of Multiple HW/SW combinations, and aims to support evaluation of Multiple application in one kit.

GD-xD-W515-EVAL including:
Main control board with GigaDevice
GD32W515PIQ6 MCU
GD30BC2416 BMIC
GD30LD1002 LDO
GD25Q128E NOR Flash
GD-Link Debugger. etc.

Fingerprint Board with GigaDevice GSL6157 Fingerprint sensor

  • Display board with 0,96-inch OLED



Active Components

Odour Eliminator via Photocatalysis Filter + UVA-LED

Odour Eliminator via Photocatalysis Filter + UVA-LED with air quality sensor / Infrared

Manufacturer: Everlight, Delta, Sciosense, Azoteq, Nisshinbo

  • No maintenance and inactivation of bacteria,
  • Protozoa, viruses and algae (Filter)
  • Energy efficient and infinite on/off switching -> battered, wearable solutions
  • Ecologically friendly (no produce hazardous air pollutants -> Ozone…)
  • Contain no mercury

Applications

  • Air conditioning,
  • Odour and VOC removal generation

Virtual Laser Keyboard, Infrared VCSEL, Photodiode and Ambient Light Sensor

Manufacturer: Everlight, Brightlaser, Lextar , Harvatek

Applications

  • Industrial sensors
  • Pulse oximetry
  • Low light laser therapy
  • Brain therapy
  • Machine vision
  • Red lighting
  • Data communication
  • Spectroscopy
  • 3D sensing

Odour Eliminator

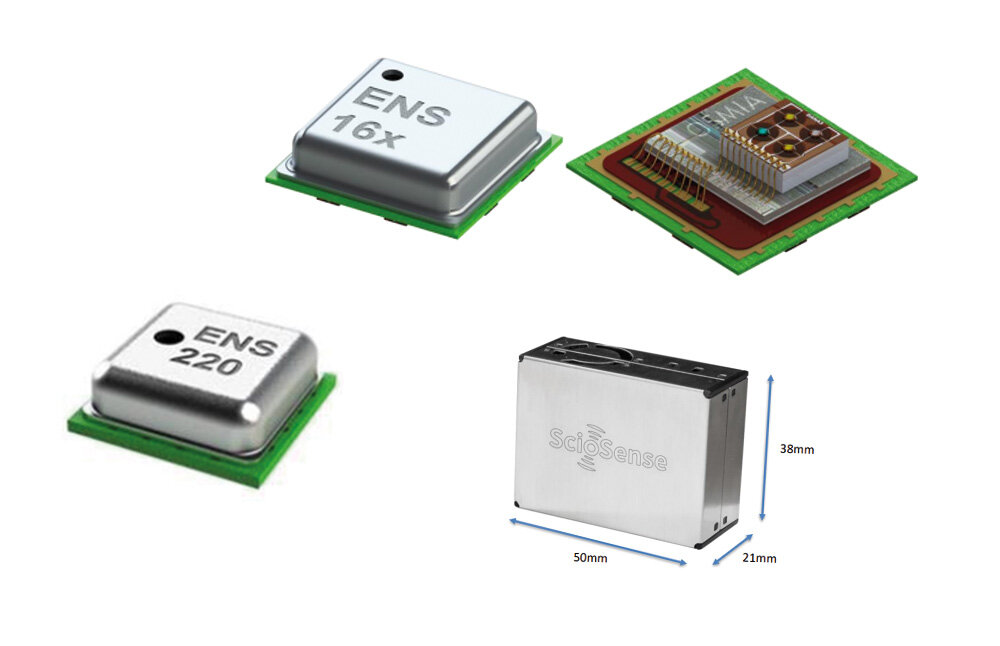

Environmental Sensors

Environmental Sensors (gas and particle sensors, humidity sensors, digital temperature sensors and air pressure sensors)

Environmental Sensor: Gas Sensor, Temperature / Humidity Sensor, barometric Pressure

  • ENS21xA Digital Temperature and Humidity Sensor Family
  • Premium Accuracy Barometric Pressure and Temperature Sensor ENS220
  • Low Power Digital Air Quality Multi Gas Sensor ENS161
  • APC1 Matchbox-size Air Quality Combo Sensor

 Applications

• Home & building automation: HVAC control, Smart buildings
• Utilities & Infrastructure: Water / Gas flow metering
• Automotive: Air quality, HVAC and battery monitoring
• Consumer: Home appliances, Wearables, IoT devices
• Industrial: Sensor Interfaces, Instrumentation

Environmental Sensors

Pressure- and Touch Sensors

Pressure sensors
Manufacturer: CF-Sensor, Micro Sensor

  • CF-Sensor: inexpensive analogue and digital piezoresistive PCB-MEMS-pressure sensors for non-corrosive gases or air as well as for liquids.

  • Micro Sensor: wide range of piezoresistive pressure sensors and pressure-transmitter for industrial applications like industrial control and automation, level sensors and submersible probes for efficient tank level measuring.

Flow sensors
Manufacturer: CF-Sensor

  • Gas-Flow sensor, air-flow sensor for industrial or home automation.

Capacitive & Inductive Touch Sensors
Manufacturer: Azoteq

  • Based on supplier own technology
  • Well-known capazitive touch solutions
  • Buttons, sliders, wheels, trackpads
  • New: Inductive touch solutions
  • Also based on supplier own technology
  • Robust against EMI and salt water
  • Thickness of cover is almost unlimited
  • Light finger pressure is necessary
Pressure Sensors

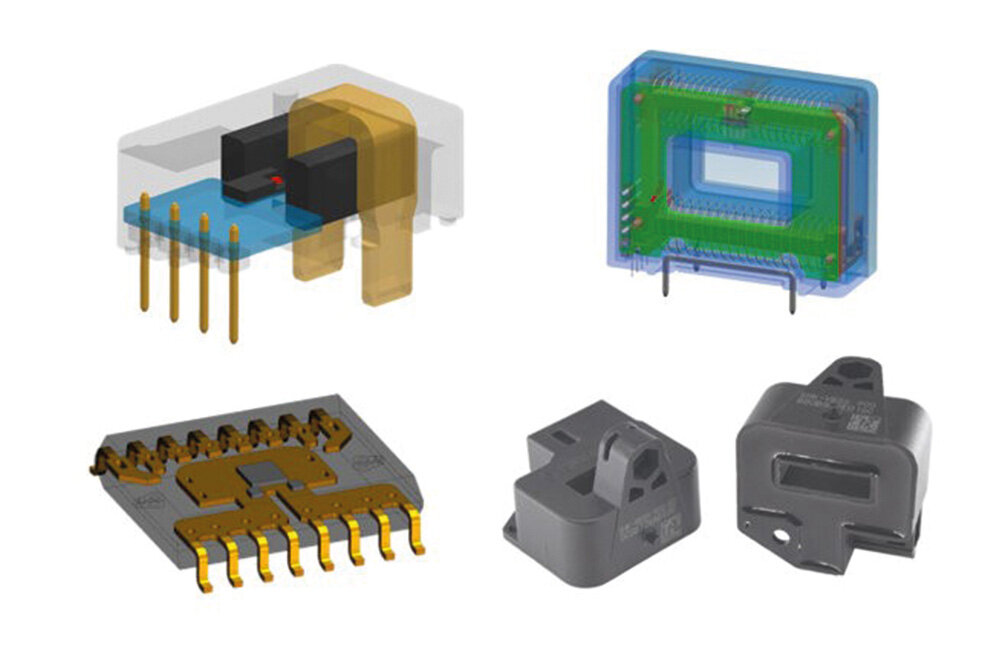

Current Sensors

Manufacturer: Sensitec

  • Based on TMR, AMR and Hall-Technology
  • Ferrite-core and coreless current sensors
  • Open- und closed-loop current sensors
  • Residual current sensors
  • Automotive-certified
  • Production facility in Germany
  • TMR-switches are available from Sensitec as well



Current Sensors
