LNA

Nisshinbo Micro Devices offers Low Noise Amplifiers (LNAs) ideal for various communication applications that frequency range from several 10 MHz to 6 GHz. Their LNAs have advantages such as high gain, low noise figure and low distortion. They also provide Front-End Modules (FEMs) that integrate SAW filter and LNA for GNSS applications.

There are 10 of 48 products shown.

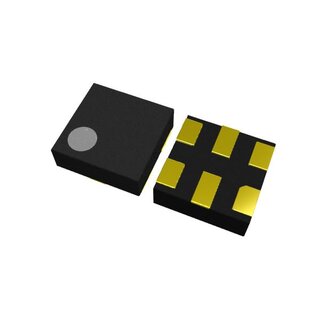

NJG1143UA2

  • Package (LNA): EPFFP6-A2
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.85 V
  • Operating Current [mA]: 3 mA
  • Gain typ [dB]: 20/19
  • NF typ [dB]: 0,7/0,75
  • P-1dB typ [dBm]: -16,5/-19,5
  • IIP3 typ [dBm]: -2/-6
  • Manufacturer: Nisshinbo
NJG1143UA2

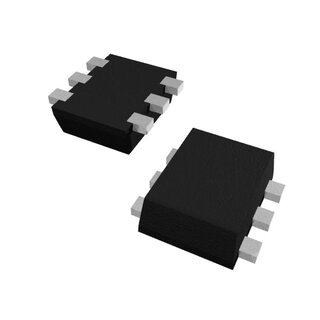

NJG1144KA1

  • Package (LNA): FLP6-A1
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.85 V
  • Operating Current [mA]: 1.8 mA
  • Gain typ [dB]: 21/18
  • NF typ [dB]: 0,65/0,85
  • P-1dB typ [dBm]: -16,5/-18,5
  • IIP3 typ [dBm]: -2/-6
  • Manufacturer: Nisshinbo
NJG1144KA1

NJG1145UA2

  • Package (LNA): EPFFP6-A2
  • Operating Voltage [V]: 2.8 V ... 2.8 V
  • Operating Current [mA]: 20 mA
  • Gain typ [dB]: 15
  • NF typ [dB]: 1,5
  • IIP3 typ [dBm]: 10
  • Manufacturer: Nisshinbo
NJG1145UA2

NJG1146KG1

  • Package (LNA): ESON6-G1
  • Operating Voltage [V]: 5 V ... 5 V
  • Operating Current [mA]: 60 mA
  • Gain typ [dB]: 12
  • NF typ [dB]: 2,2
  • P-1dB typ [dBm]: 6
  • IIP3 typ [dBm]: 22
  • Manufacturer: Nisshinbo
NJG1146KG1

NJG1148MD7

  • Package (LNA): EQFN14-D7
  • Frequency Range [MHz]: 5500
  • Operating Voltage [V]: 3.3 V ... 3.3 V
  • Operating Current [mA]: 7 mA
  • Gain typ [dB]: 12,5
  • NF typ [dB]: 1,5
  • P-1dB typ [dBm]: -5
  • IIP3 typ [dBm]: 5
  • Manufacturer: Nisshinbo
NJG1148MD7

NJG1150UA2

  • Package (LNA): EPFFP6-A2
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 4.2 mA
  • Gain typ [dB]: 16/16
  • NF typ [dB]: 0,6/0,6
  • P-1dB typ [dBm]: -7/-9
  • IIP3 typ [dBm]: 1/-1
  • Manufacturer: Nisshinbo
NJG1150UA2

NJG1151MD7

  • Package (LNA): EQFN14-D7
  • Operating Voltage [V]: 5 V ... 5 V
  • Operating Current [mA]: 100 mA
  • Gain typ [dB]: 6
  • NF typ [dB]: 2,5
  • P-1dB typ [dBm]: 7
  • IIP3 typ [dBm]: 20
  • Manufacturer: Nisshinbo
NJG1151MD7

NJG1152KA1

  • Package (LNA): FLP6-A1
  • Operating Voltage [V]: 3.3 V ... 3.3 V
  • Operating Current [mA]: 20 mA
  • Gain typ [dB]: 18
  • NF typ [dB]: 0,9
  • P-1dB typ [dBm]: -5
  • IIP3 typ [dBm]: 7
  • Manufacturer: Nisshinbo
NJG1152KA1

NJG1155UX2

  • Package (LNA): EPFFP6-X2
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 3.1 mA
  • Gain typ [dB]: 19/18,5
  • NF typ [dB]: 0,75/0,75
  • P-1dB typ [dBm]: -12,5/-16
  • IIP3 typ [dBm]: -1,5/-5
  • Manufacturer: Nisshinbo
NJG1155UX2

NJG1156PCD

  • Package (LNA): HFFP10-CD
  • Frequency Range [MHz]: 1575
  • Operating Voltage [V]: 1.8 V ... 2.8 V
  • Operating Current [mA]: 2.6 mA
  • Gain typ [dB]: 18,5/17,5
  • NF typ [dB]: 1,55/1,60
  • P-1dB typ [dBm]: -15/-17
  • IIP3 typ [dBm]: -4/-6
  • Manufacturer: Nisshinbo
NJG1156PCD
