RF-Switch

Nisshinbo Micro Devices provides RF switches that cover various communication applications such as 5G, Wi-Fi 6/6E and so on. The advantages of high performance switches are low insertion loss, high isolation and high linearity even if high frequency band by our unique GaAs process. Furthermore, integrated ESD protection elements achieve excellent ESD robustness.They also offer automotive grade products. In addition, Nisshinbo develop RF devices by SOI process.

There are 10 of 44 products shown.

NJG1801K75

  • Package (RF-Switch): DFN6-75
  • Features: SPDT Switch
  • P-1dB [dBm]: 31@2.5GHz 31@5.9GHz 31@8.5GHz
  • Power Level: High Power
  • Insertion Loss [dB]: 0,35@2,4 to 2,5GHz 0,45@4,9 to 5,9GHz 0,60@8,5GHz
  • Isolation [dB]: 28@2,4 to 2,5GHz 30@4,9 to 5,9GHz 20@8,5GHz
  • Manufacturer: Nisshinbo
NJG1801K75

NJG1802K51

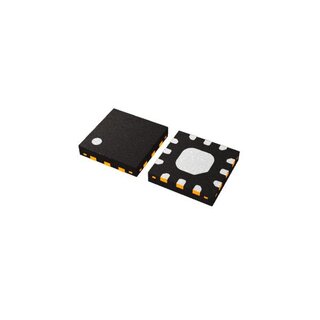

  • Package (RF-Switch): QFN12-51
  • Features: SPDT Switch
  • P-1dB [dBm]: 36
  • Power Level: High Power
  • Insertion Loss [dB]: 0,18@0,9GHz 0,20@1,9GHz 0,23@2,7GHz
  • Isolation [dB]: 50@0,9GHz 38@1,9GHz 33@2,7GHz
  • Manufacturer: Nisshinbo
NJG1802K51

NJG1804K64

  • Package (RF-Switch): DFN8-64
  • Features: SP3T Switch
  • P-1dB [dBm]: 29
  • Power Level: High Power
  • Insertion Loss [dB]: 0,50@2,4 to 2,5GHz 0,60@4,9 to 5,9GHz
  • Isolation [dB]: 30@2,4 to 2,5GHz 26@4,9 to 5,9GHz
  • Manufacturer: Nisshinbo
NJG1804K64

NJG1806K75

  • Package (RF-Switch): DFN6-75
  • Features: SPDT Switch
  • P-1dB [dBm]: 31
  • Power Level: High Power
  • Insertion Loss [dB]: 0,35@0,7GHz 0,35@1,9GHz 0,35@2,4 to 2,5GHz 0,4@4,9 to 5,9GHz
  • Isolation [dB]: 30@0,7GHz 25@1,9GHz 25@2,4 to 2,5GHz 25@4,9 to 5,9GHz
  • Manufacturer: Nisshinbo
NJG1806K75

NJG1808K94

  • Package (RF-Switch): QFN9-94
  • Features: SP3T Switch
  • P-1dB [dBm]: 24
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,35@1,0GHz 0,4@2,0GHz 0,4@2,7GHz
  • Isolation [dB]: 29@1,0GHz 26@2,0GHz 24@2,7GHz
  • Manufacturer: Nisshinbo
NJG1808K94

NJG1809ME7

  • Package (RF-Switch): EQFN18-E7
  • Features: SP4T Switch
  • P-1dB [dBm]: 32
  • Power Level: High Power
  • Insertion Loss [dB]: 0,4@2,7GHz 0,4@3,5GHz 0,5@5,85GHz
  • Isolation [dB]: 27@2,7GHz 25@3,5GHz 30@5,85GHz
  • Manufacturer: Nisshinbo
NJG1809ME7

NJG1812ME4

  • Package (RF-Switch): EQFN12-E4
  • Features: DPDT Switch
  • P-1dB [dBm]: 36
  • Power Level: High Power
  • Insertion Loss [dB]: 0,25@900MHz 0,35@1900MHz 0,45@2700MHz
  • Isolation [dB]: 25@900MHz 20@1900MHz 17@2700MHz
  • Manufacturer: Nisshinbo
NJG1812ME4

NJG1813KG1

  • Package (RF-Switch): EQFN6-G1
  • Features: DPDT Switch
  • P-1dB [dBm]: 30
  • Power Level: High Power
  • Insertion Loss [dB]: 0,45@920MHz
  • Isolation [dB]: 30@920MHz
  • Manufacturer: Nisshinbo
NJG1813KG1

NJG1814MD7

  • Package (RF-Switch): EQFN14-D7
  • Features: SPDT Switch
  • P-1dB [dBm]: 33
  • Power Level: High Power
  • Insertion Loss [dB]: 0,35@0,7GHz 0,38@2,0GHz 0,40@2,7GHz 0,45@5,85GHz
  • Isolation [dB]: 42@0,7GHz 35@2,0GHz 34@2,7GHz 33@5,85GHz
  • Manufacturer: Nisshinbo
NJG1814MD7

NJG1815K75

  • Package (RF-Switch): DFN6-75
  • Features: SPDT Switch
  • P-1dB [dBm]: 31
  • Power Level: High Power
  • Insertion Loss [dB]: 0,45@2,4 to 2,5GHz 0,4@4,9 to 6GHz
  • Isolation [dB]: 25@2,4 to 2,5GHz 25@4,9 to 6GHz
  • Manufacturer: Nisshinbo
NJG1815K75
