RF-Switch

Nisshinbo Micro Devices provides RF switches that cover various communication applications such as 5G, Wi-Fi 6/6E and so on. The advantages of high performance switches are low insertion loss, high isolation and high linearity even if high frequency band by our unique GaAs process. Furthermore, integrated ESD protection elements achieve excellent ESD robustness.They also offer automotive grade products. In addition, Nisshinbo develop RF devices by SOI process.

There are 10 of 44 products shown.

NJG1681MD7

  • Package (RF-Switch): EQFN14-D7
  • Features: SPDT Switch
  • P-1dB [dBm]: 36
  • Power Level: High Power
  • Insertion Loss [dB]: 0,18@0,9GHz 0,20@1,9GHz 0,23@2,7GHz 0,45@6,0GHz
  • Isolation [dB]: 45@0,9GHz 35@1,9GHz 30@2,7GHz 20@6,0GHz
  • Manufacturer: Nisshinbo
NJG1681MD7

NJG1682MD7

  • Package (RF-Switch): EQFN14-D7
  • Features: SP3T Switch
  • P-1dB [dBm]: 36
  • Power Level: High Power
  • Insertion Loss [dB]: 0,22@0,9GHz 0,25@1,9GHz 0,30@2,7GHz
  • Isolation [dB]: 35@0,9GHz 30@1,9GHz 27@2,7GHz
  • Manufacturer: Nisshinbo
NJG1682MD7

NJG1683ME7

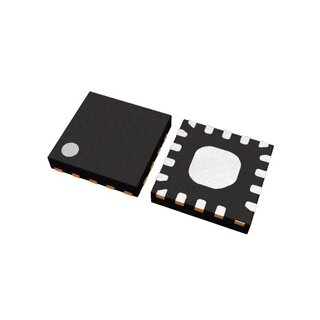

  • Package (RF-Switch): EQFN18-E7
  • Features: X-SP3T Switch(DP6T) High Isolation
  • P-1dB [dBm]: 23
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,35@1,0GHz 0,45@2,0GHz 0,60@2,7GHz
  • Isolation [dB]: 55@1,0GHz* 47@2,0GHz* 45@2,7GHz*
  • Manufacturer: Nisshinbo
NJG1683ME7

NJG1684ME2

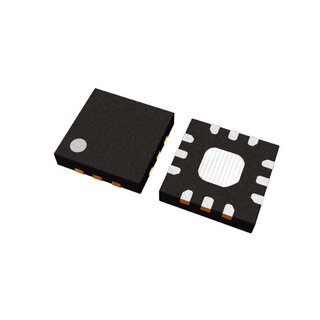

  • Package (RF-Switch): EQFN12-E2
  • Features: SP4T Switch
  • P-1dB [dBm]: 36
  • Power Level: High Power
  • Insertion Loss [dB]: 0,25@0,9GHz 0,30@1,9GHz 0,35@2,7GHz
  • Isolation [dB]: 37@0,9GHz 29@1,9GHz 25@2,7GHz
  • Manufacturer: Nisshinbo
NJG1684ME2

NJG1686MHH

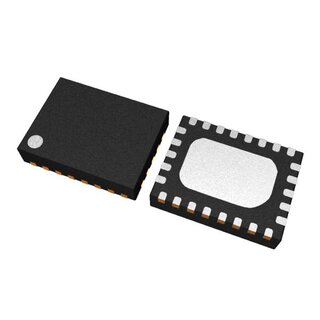

  • Package (RF-Switch): EQFN26-HH
  • Features: SP10T Switch
  • P-1dB [dBm]: -
  • Power Level: High Power
  • Insertion Loss [dB]: 0,65@452 to 960MHz 0,30@452 to 960MHz 0,75@1710 to 2170MHz 0,45@1710 to 2170MHz 1,10@2300 to 2690MHz 0,45@2300 to 2690MHz 1,05@GSM850/900 1,20@GSM1800/1900
  • Isolation [dB]: 38@GSM850/900 34@GSM1800/1900 25@452 to 2690MHz 36@1805 to 1990MHz 33@452 to 2690MHz
  • Manufacturer: Nisshinbo
NJG1686MHH

NJG1690MD7

  • Package (RF-Switch): EQFN14-D7
  • Features: DP4T Switch(X-SPDT)
  • P-1dB [dBm]: 24
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,3@1GHz 0,4@2GHz 0,45@2,7GHz
  • Isolation [dB]: 37@2,7GHz* 29@1GHz 24@2GHz 21@2,7GHz
  • Manufacturer: Nisshinbo
NJG1690MD7

NJG1695ME7

  • Package (RF-Switch): EQFN18-E7
  • Features: X-SP4T Switch(DP8T) High Isolation
  • P-1dB [dBm]: 23
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,45@1,0GHz 0,55@2,0GHz 0,80@2,7GHz
  • Isolation [dB]: 43@1,0GHz* 38@2,0GHz* 35@2,7GHz*
  • Manufacturer: Nisshinbo
NJG1695ME7

NJG1697EM1

  • Package (RF-Switch): DFN6-M1
  • Features: SPDT Switch. High Isolation
  • P-1dB [dBm]: 21
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,45@1GHz 0,50@2GHz 0,55@2,7GHz
  • Isolation [dB]: 50@1GHz 48@2GHz 43@2,7GHz
  • Manufacturer: Nisshinbo
NJG1697EM1

NJG1699MD7

  • Package (RF-Switch): EQFN14-D7
  • Features: SP4T Switch. High Isolation
  • P-1dB [dBm]: 21
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,55@1GHz 0,55@2GHz 0,60@2,7GHz
  • Isolation [dB]: 50@1GHz 48@2GHz 43@2,7GHz
  • Manufacturer: Nisshinbo
NJG1699MD7

NJG1800NB2

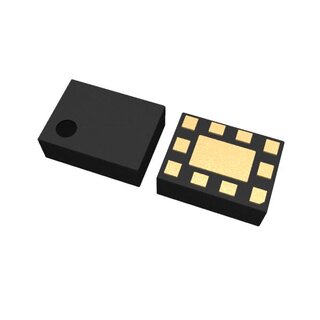

  • Package (RF-Switch): EPCSP10-B2
  • Features: DP4T Switch(X-SPDT)
  • P-1dB [dBm]: 21
  • Power Level: Low Power
  • Insertion Loss [dB]: 0,38@2GHz 0,36@2,7GHz
  • Isolation [dB]: 39@2GHz 37@2,7GHz
  • Manufacturer: Nisshinbo
NJG1800NB2
