Schottky Diodes/Rectifier (SiC)

Schottky diodes/rectifier have a low total capacitive charge, which reduces switching losses and at the same time enables a fast switching process. Schottky diodes based on silicon carbide (SiC) are characterized by constant properties in contrast to silicon (Si) based diodes with a short recovery time, where the reverse recovery time increases with the temperature, resulting in better performance.

There are 10 of 15 products shown.

ESIC05065SD

  • Package: TO-252 (D-PAK)
  • VRRM [V]: 650 V
  • IF [A]: 5 A
  • IFSM max. [A]: 60 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 23 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC05065SD

ESIC05120S

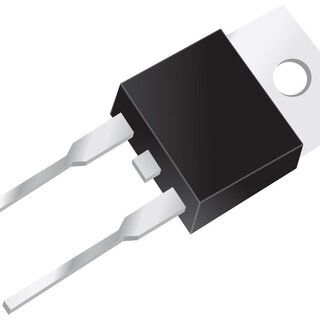

  • Package: TO-220AC
  • VRRM [V]: 1,200 V
  • IF [A]: 5 A
  • IFSM max. [A]: 35 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 36 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC05120S

ESIC10065S

  • Package: TO-220AC
  • VRRM [V]: 650 V
  • IF [A]: 10 A
  • IFSM max. [A]: 60 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 36 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC10065S

ESIC08065S

  • Package: TO-220AC
  • VRRM [V]: 650 V
  • IF [A]: 8 A
  • IFSM max. [A]: 56 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 30 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC08065S

ESIC0506SD

  • Package: TO-263 (D2-PAK)
  • VRRM [V]: 600 V
  • IF [A]: 5 A
  • IFSM max. [A]: 75 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 15 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC0506SD

ESIC0506S

  • Package: TO-220AC
  • VRRM [V]: 600 V
  • IF [A]: 5 A
  • IFSM max. [A]: 75 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 15 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC0506S

ESIC06065SF

  • Package: ITO-220AC
  • VRRM [V]: 650 V
  • IF [A]: 6 A
  • IFSM max. [A]: 40 A
  • IR @ VRRM max. [μA]: 50 μA
  • QC typ. [nC]: 23 nC
  • VF @ IF max. [V]: 1.7 V
  • Manufacturer: Eris
ESIC06065SF

ESIC0406S

  • Package: TO-220AC
  • VRRM [V]: 600 V
  • IF [A]: 4 A
  • IFSM max. [A]: 75 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 15 nC
  • VF @ IF max. [V]: 1.7 V
  • Manufacturer: Eris
ESIC0406S

ESIC04065S

  • Package: TO-220AC
  • VRRM [V]: 650 V
  • IF [A]: 4 A
  • IFSM max. [A]: 30 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 11 nC
  • VF @ IF max. [V]: 1.7 V
  • Manufacturer: Eris
ESIC04065S

ESIC05065S

  • Package: TO-220AC
  • VRRM [V]: 650 V
  • IF [A]: 5 A
  • IFSM max. [A]: 35 A
  • IR @ VRRM max. [μA]: 100 μA
  • QC typ. [nC]: 17 nC
  • VF @ IF max. [V]: 1.8 V
  • Manufacturer: Eris
ESIC05065S
Package

Vrrm [V]

If [A]

Ifsm max. [A]

Ir @ Vrrm max. [µA]

Qc typ. [nC]

Vf @ If max. [V]

Automotive
