Photo Triacs

Via a transparent isolating material a photo triac, also called opto triac, of the manufacturer Cosmo, Everlight and CT Micro optically links an infrared LED and a phototriac within one housing.
Photo Triacs are typically used as solid-state AC switches.
Quite generally there are two classes of phototriacs available: with and without zero-crossing circuit. This internal circuit makes the triac switch on or off only when the applied alternating voltage is near the zero-value.

Features

  • DIL, SMD and Mini-flat (SOP) housing
  • Trigger current IFT= 5-15 mA
  • Peak voltage Vpeak = 400 - 800 V
  • Isolation voltage Viso up to 5.000V
  • UL and VDE approved
  • REACH & RoHS compliant

downloads

There are 10 of 150 products shown.

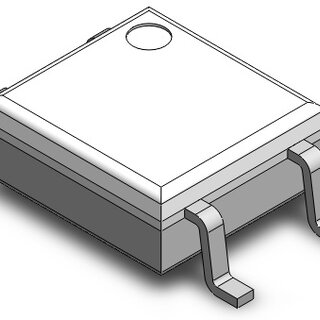

CTM3022(V)(T1)

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 400 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 10 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3022(V)(T1)

CTM3023(V)(T2)

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 400 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 5 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3023(V)(T2)

CTM3023(V)(T1)

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 400 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 5 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3023(V)(T1)

CTM3051-T2

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 600 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 15 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3051-T2

CTM3051-T1

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 600 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 15 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3051-T1

CTM3052-T2

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 600 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 10 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3052-T2

CTM3052-T1

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 600 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 10 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3052-T1

CTM3053-T2

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 600 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 5 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3053-T2

CTM3053-T1

  • Package: SOP-4
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 600 V
  • VISO [V]: 3,750 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 5 A
  • CTM [V]: 2.5 V
  • Manufacturer: CT Micro
CTM3053-T1

EL3010

  • Package: DIP-6
  • Zero Cross: no
  • If [mA]: 60 mA
  • VDRM [V]: 250 V
  • VISO [V]: 5,000 V
  • IDRM max. [mA]: 100 mA
  • IFT max. [A]: 15 A
  • CTM [V]: 2.5 V
  • Manufacturer: Everlight
EL3010
