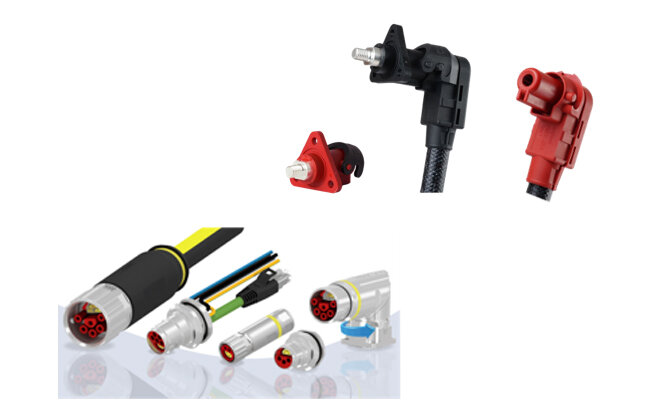

CONEC hybrid connectors & Battery Connector
CONEC hybrid connectors
• Over molded connectors
• Connectors can be assembled
• Mounting flanges
• Sizes B12 / B17 / B23 / B40
• Front mounting square
Battery connector
• Protection class IP30 mated
• Rated current up to 200A / 40°C
• Rated voltage up to 1500V
• Coding: mechanical, coloured
• Visible locking protection
• Limit temperature from -40 °C ... + 140 °C
• Touch-protected
• Cable diameter 35 mm² and 50 mm²

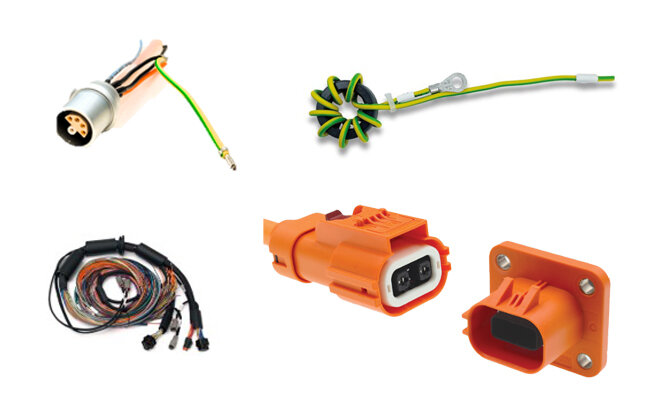

EXCEL|MATE & Battery connectors
EXCEL|MATE
• Connectors for high voltage
• Electric vehicles (EV)
• EMC protection
• Easy installation
• Waterproof (IP protection classes)
• Industrial applications
Battery connectors
• Connectors with individual strands, Flat plug connector and silicone tube
• Ferrite wrapped with PE
• Various cable harnesses

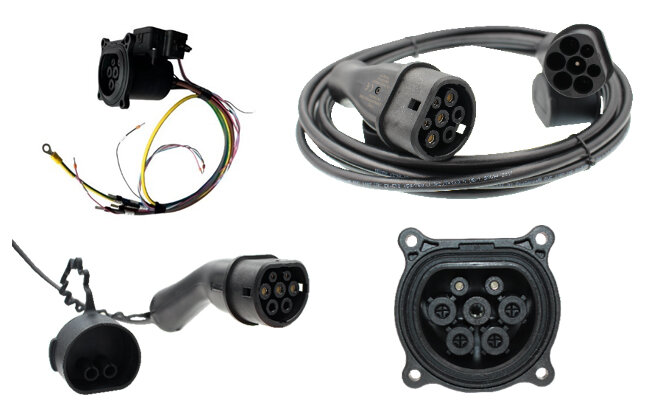

EXCEL|MATE IEC Type 2 power connector
EXCEL|MATE IEC Type 2 power connector
• Compatible with IEC 62196-1/2/3, IEC 61851-1
• Connector: EN17186
• Vehicle connector: CE, EV ready & UKCA
• 1-Phase: 250 V | 20 A, 32 A
• 3-Phase: 480 V | 20 A, 32 A
• Connector with shutter
