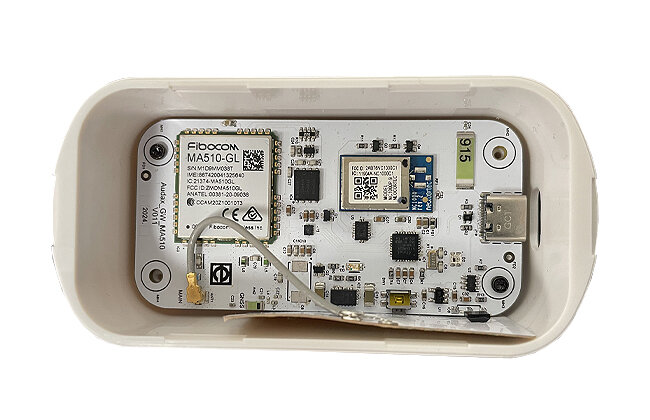

EIOT-CN915GW-LPWA-MA510-USB

This module has been developed for collecting and transmitting data arriving from the NeoCortec module based local mesh WLAN to the (E-)Cloud. Data can be collected and transmitted in a relatively small time-interval as being powered from mains (5V USB). The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the (E-)Cloud together with the sensor nodes’ data via the LPWA cellular network. In case there is a need of a more precise (outdoor only)  geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating.

Functions

LPWA modem (NB-1&NB-2 NB-IoT, CATM-1 with fallback to 2G)
In-  and Outdoor localization with GPS and LBS
868 MHz (subGHz) mesh module for EU operation / 915 MHz for Americas
Direct E-Cloud integration (PP)

Suggested application area

Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks
Large battery-operated smart sensor networks in cities, buildings, hotels etc.

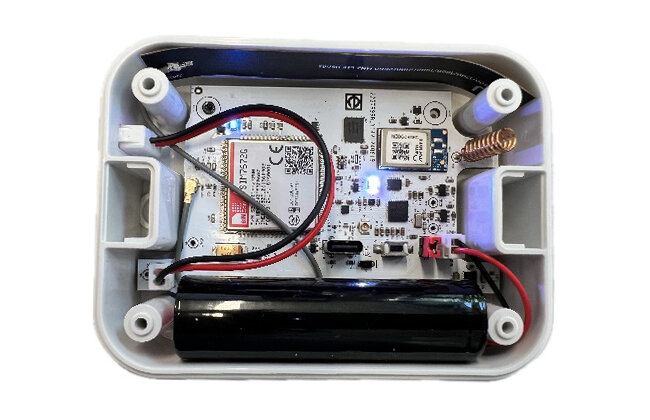

EIOT-CN868GW-LTE-S7672-USB

This module has been developed for collecting and transmitting data arriving from the NeoCortec module based local mesh WLAN to the (E-)Cloud. Data can be collected and transmitted in a relatively small time-interval as being powered from mains (5V USB). The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the (E-)Cloud together with the sensor nodes’ data via the LTE cellular network. In case there is a need of a more precise (outdoor only)  geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating.

Functions

Cellular communication CAT1-BIS (4G/LTE)
In-  and Outdoor localization with GPS and LBS
868 MHz (SubGHz) mesh module for EU operation / 915 MHz for Americas
Direct E-Cloud integration (PP)

Suggested application area

Refrigerators, freezers
Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks
Large battery-operated smart sensor networks in cities, buildings, hotels etc.

EIOT-CN868GW-LTE-S7672-USBLION

This module has been developed for collecting and transmitting data arriving from the NeoCortec module based local mesh WLAN to the (E-)Cloud. Data can be collected and transmitted in a relative small time-interval as being powered from mains (5V USB). The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the (E-)Cloud together with the sensor nodes’ data via the LTE cellular network. In case there is a need of a more precise (outdoor only)  geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating. This gateway module detects power shortage due to power failure or disconnecting the device, and automatically enters to backup battery mode, sending alert messages to the Cloud.

Functions

Cellular communication CAT1-BIS (4G/LTE)
In-  and Outdoor localization with GPS and LBS
868 MHz (subGHz) mesh module for EU operation / 915 MHz for Americas
Direct E-Cloud integration (PP)
Back up battery

Suggested application area

Refrigerators, freezers
Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks
Large battery-operated smart sensor networks in cities, buildings, hotels etc.

EIOT-ANOD-MESH-NC868-CR123

This module has been developed for collecting environmental data such as temperature, visible light intensity, offers own battery voltage monitoring and is able to count magnetic pulses (e.g. for door open counter). The onboard NeoCortec radio module provides with using the nodes in an ad-hoc, subGHz local WLAN mesh. Data can be collected and transmitted with predefined frequency towards the gateway. The nodes are powered from CR123A lithium battery and can operate for years without battery replacement. Large number of devices can be organized to a mesh network with a distance between nodes up to 100-200 meters (outside) and 10-15m indoor.


Functions

NeoMesh WLAN technology
868 MHz (SubGHz) Mesh module for EU operation / 915 MHz for Americas
       Multiple sensors on board for:
Ambient light
Magnetic
Noise
Acceleration/Gyro
Temperature Sensor (external probe)
Humidity

Suggested application area

Refrigerators, freezers
Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks
Large battery-operated smart sensor networks in cities, buildings, hotels etc. networks in cities, buildings, hotels etc.

EIOT-UNOD-MESH-NC868-CR123

This module has been developed for offering continuous monitoring of the AC power existence of an electric device, It also reports the own battery voltage level. The onboard NeoCortec radio module enables using the nodes in an ad-hoc, subGHz local WLAN mesh. Data can be collected and transmitted with predefined frequency. The nodes are powered from CR123A lithium battery and can operate for years without battery replacement. Large number of devices can be organized to a mesh network with a distance between nodes up to 100-200 meters (outside) and 10-15m indoor.

Functions

NeoMesh WLAN technology
868 MHz (SubGHz) Mesh module for EU operation / 915 MHz for Americas
       Multiple Sensors on board for:
Ambient light
Magnetic
Temperature (external probe)
Humidity
Monitoring AC power

Suggested application area

Refrigerators, freezers
Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks
Large battery-operated smart sensor networks in cities, buildings, hotels etc. networks in cities, buildings, hotels etc.

EIOT-PPSB-LPWA S7080-ERSPC

Cellular Data Transmitter Module with backup ER battery
This module has been developed for collecting and transmitting environmental data such as temperature, humidity, acceleration, gyro, light intensity, magnetic field, noise level for also using on very low temperatures. It is possible to detect and send data in a short interval as being powered from mains. The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the E-Cloud together with the sensor data via the LPWA cellular network. In case there is a need of a more precise (outdoor only) geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating. The module detects power shortage due to power failure or disconnecting the device, and automatically enters to backup battery mode, sending alert messages. With the Cellular Data Transmitter device, you can enjoy the advantages of daily data gathering and instant notifications.

Functions
Cellular Data Transmitter Module with backup ER battery
In- and Outdoor localization  with GPS and LBS
Back up battery
        Multiple Sensors on board for:
Ambient light
Magnetic
Noise
Acceleration/Gyro
Temperature
Humidity

Suggested application area

Refrigerators, freezers (with internal installation)
Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks

EIOT-PPSB-LPWA-S7080-USBLION

Cellular Data Transmitter Module with back up battery
This module has been developed for collecting and transmitting environmental data such as temperature, humidity, acceleration, gyro, light intensity, magnetic field, noise level in a short interval as being powered from mains. The LBS based (low energy, in- and outdoor) geolocalization offers a 500m radius precision, which is enough for basic operation. The localization data is sent to the E-Cloud together with the sensor data via the LPWA cellular network. In case there is a need of a more precise (outdoor only)  geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher precision of locating. The module detects power shortage due to power failure or disconnecting the device, and automatically enters to backup battery mode, sending alert messages.

Functions

Cellular communication via NB-IoT/LTE-M
Indoor and outdoor localization via LBS and GNSS
Back up LI-ION battery
        Multiple sensors on board for:
Ambient light
Magnetic
Noise
Acceleration/Gyro
Temperature
Humidity

Suggested application area

Refrigerators, freezers (with internal installation)
Predictive maintenance
Environmental parameter mapping (temperature, humidity, light intensity etc.) for public area, warehouses, rooms, houses, shops
Tracking tasks

EIOT-TRCK-LPWA- S7080-ERSPC

E-IoT smart sensor with cellular communication to sensor to cloud connectivity
This module has been developed for geolocalization and tracking purposes. The daily LBS based (low energy, in- and outdoor) localization offers a 500m radius precision, which is enough for basic geolocalization in– and outdoor. The localization data is sent to the E-Cloud via the LPWA cellular network. In case there is a need of a more precise geolocalization, the E-Cloud is able to send command (at next data sending) to the module to switch to GNSS mode with higher frequency of data communication. Battery lifetime issues may arise, and battery replacement might be necessary after longer time of using the tracker in GNSS mode.

Functions

Cellular communication via NB-IoT/LTE-M
Indoor and outdoor localization via LBS and GNSS
