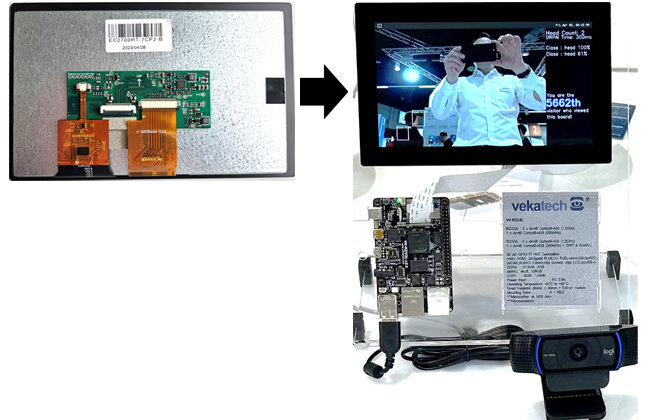

Application: AI-supported component recognition for THT soldering process

F&S own trained model and TFLite implementation uses ETHOS U65 NPU

• PicoCore i.MX93 i.MX93 (Dual-Core),  NPU: ETHOS U65
• 1 GB LPDDR4, 16 GB eMMC, 2 MB NOR-Flash
• 1x Gbit/Ethernet
• WIFI 6, BT 5.2

Single-Board-Computer (SBC)

• SBC with RENESAS ARM Cortex-A55, Cortex-M33
• 2GB RAM, 32GB eMMC, 32MB QSPI
• Display MIPI DSI port
• Camera MIPI CSI port
• USB, CAN, RJ45, UART….
• Standard Raspberry Pi 40pin header for shields
• Raspberry Pi4  form factor
• CE certified

iSi30+ 7“ TFT-Display with PCAP

• Size 7.0“, IPS-Technology
• iSi30+ -> all-in-one connector
• Resolution 1.024 x 600
• Brightness 600 cd/m²
• MIPI interface for display  and I²C for touch
• PCAP with microchip IC (mXT1066T2)
• Backlightdriver on-board
• 3.3 V for display and PCAP
• 5.0 V for backlightdriver

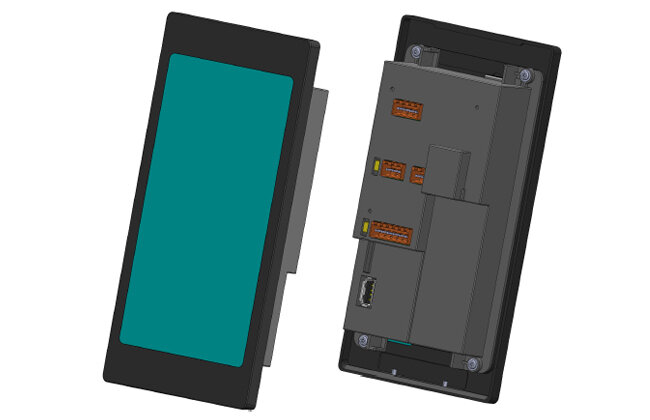

• Size 4.95“, IPS-technology
• Resolution 480 x 854 dots
• Brightness 500 cd/m², contrast 800:1
• PCAP optically bonded
• Interfaces CAN, USB, RS-485
• Custom Carrier board (Base 1)
• Custom SoM PicoCore i.MX6ULL with 8GB eMMC, 1GB RAM
• Custom plastic housing
• Designed for 24/7 operation
• Assembly of the hole product by Cre8tek (Endrich supplier)

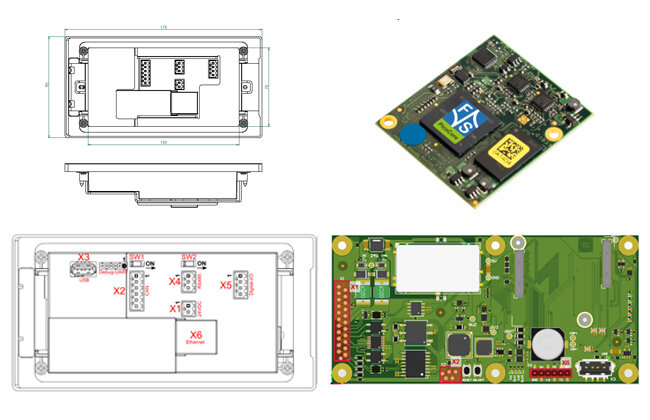

Custom plastic housing

Connector location

Custom carrier board „Base 1“with PicoCoreMX6UL

• 4“ segment E-Paper display
• 80 segments
• Response time <100ms
• PCAP optically bonded
• Interfaces SPI for E-Paper and I²C for touch

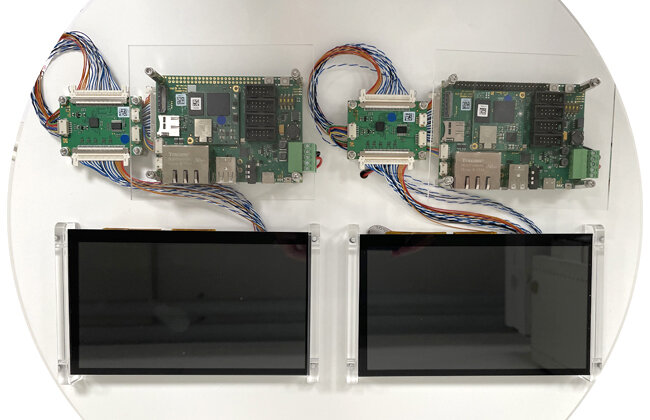

Application: Comparison of performance and power consumption between PicoCore i.MX8M Mini and PicoCore i.MX8ULP

PicoCore i.MX8M Mini:

• i.MX8M Mini (Quad-Core), 2GB LPDDR4
• 16 GB eMMC, 1 x Gbit/Ethernet

PicoCore i.MX8ULP:

• i.MX8ULP (Dual-Core), 2GB LPDDR4
• 8 GB eMMC, 1x Mbit/Ethernet

Manufacturer: Azoteq

New Touch-Technology for TFT-Displays.

Well-known capacitive touch solution:
disadvantages: expensive, sensitive to EMI,
sensitive to salt water, thickness
of cover lens is limited.

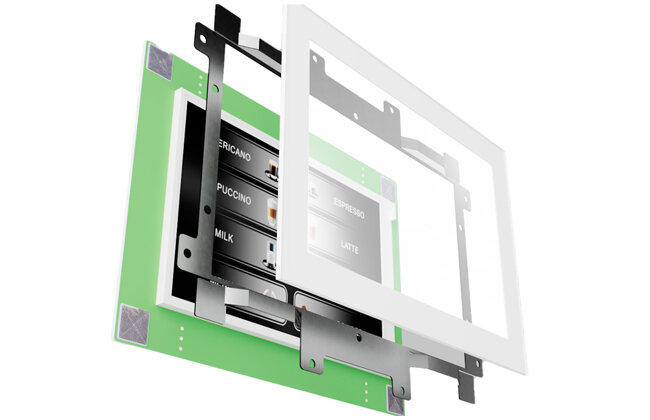

New: inductive touch solution:
advantages: cheap, robust against EMI,
robust against salt water, thickness of
cover lens is almost unlimited,
no unintended touch because
light finger pressure is necessary

Manufacturer: Lextar, Delta, Cubic, Azoteq, Nisshinbo

• No maintenance and inactivation of bacteria,
• Protozoa, viruses and algae (Filter)
• Energy efficient and infinite on/off switching -> battered, wearable solutions
• Ecologically friendly (no produce hazardous air pollutants -> Ozone…)
• Contain no mercury

Applications:

Air conditioning,
Odour and VOC removal generator

• 2 demo boards available

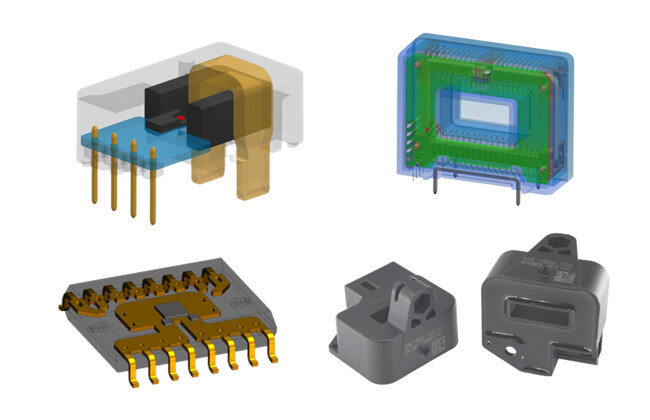

Manufacturer: Sensitec

Based on TMR, AMR and Hall-Technology
Ferrite-core and coreless current sensors
Open- und closed-loop current sensors
Residual current sensors
Automotive-certified
Production facility in Germany

 TMR-switches are also available from Sensitec

Manufacturer: endrich
LPWA and NeoMesh wireless communication extension for RS485 Smart Meters

Commercial RS485 Smart Meters
Disadvantage: Data can be accessed through only wired RS485

New solution: With the help of our e-IoT Gateways data can be forwarded wirelessly through local mesh network and/or using NB-IoT and LTE-M cellular communication with built in SIM card (no extra telecom cost)

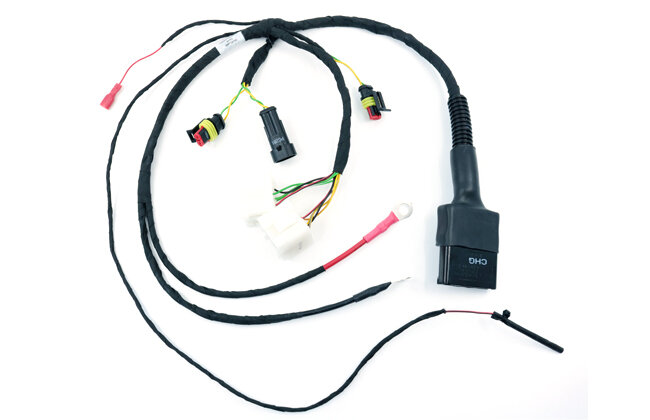

Cable harness consisting of:

• Power connection
• Cable and individual strands
• Plug connector incl. housing seal
• Ring cable lug
• 5-pole housing
• Banded cable harness
