Power supply Solutions

MPS → Power Modules

The MPS Power module portfolio comprises buck, boost,
buch-boost and multi-phase options.
These include input voltage ranges up to 75 V and output currents up to 800 A in single, dual and quad-output configurations.

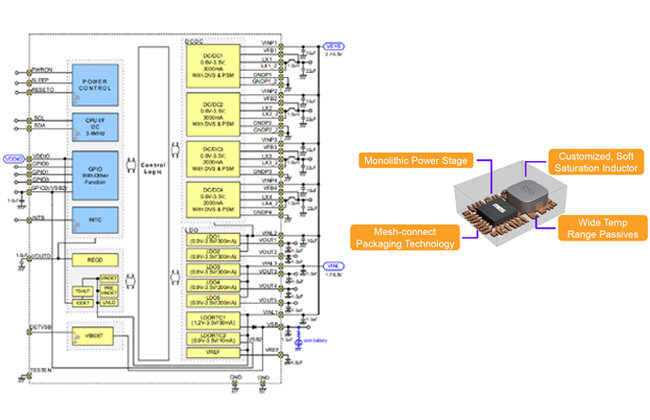

Nisshinbo → PMIC

PMICs are used in for example high-end cell phones and tablets etc., making great contributions reducing power consumption, board space and is more cost efficient compared to a solution with individual power management ICs.

A power supply for application processors, MCUs, FPGAs is often complex, meaning that an array of power management devices is required to provide power to all individual circuits.

The easiest way to build an efficient power management system is to use a single IC that has all power control functions integrated.

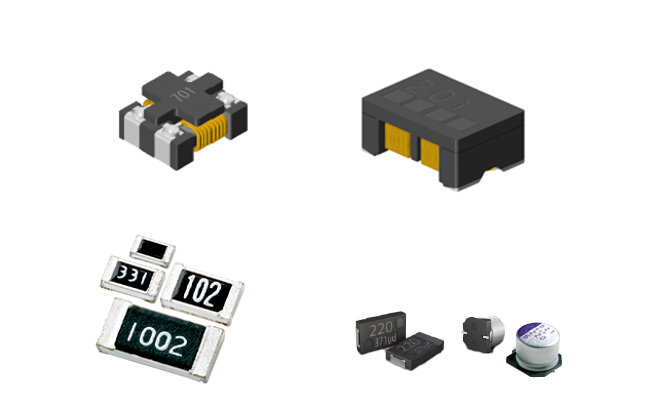

ABC-ATEC common mode choke

• QF Type – For power lines Size: 7 x 7 mm – 12 x 12 mm
• SF Type – Toroidal core / ferrite core in chip size Suitable for CAN bus, FlexRay, Ethernet
• Custom sizes available

Susumu precision resistor

• Best accuracy: Initial tolerances as low as +/- 0.01 %
• Best temperature stability: TCR up to +/- 1 ppm/K
• Minimal deviation: Long-term stability typically 10-20 times better compared to thick-film resistors
• Lowest current noise: Noise suppression typically -20dB
• Suitable for high-frequency applications: Stable resistance up to the low GHz range

Panasonic polymer capacitor

• OS-CON in SMD and THT packages in cup form up to 10 mm in diameter and 13 mm in height
• POSCAP in chip form for smaller sizes with a maximum voltage of 35V and a capacitance of up to 1500 µF

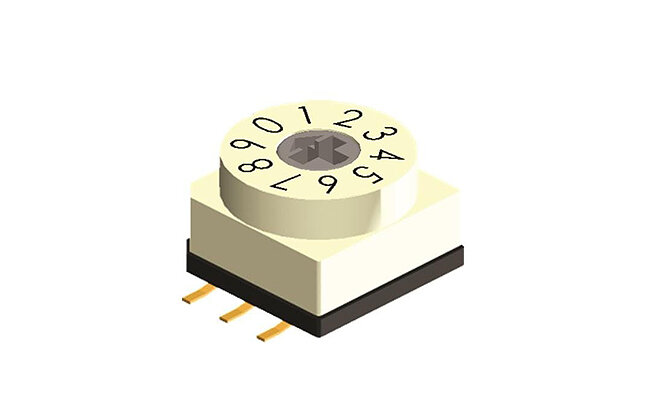

Rotary Dip Switch RBM3 Diptronics

• SMT-Type
• Coded rotary switches
• SMD 3 x 3 Term
• 10 STEP FLAT HEAD ACT

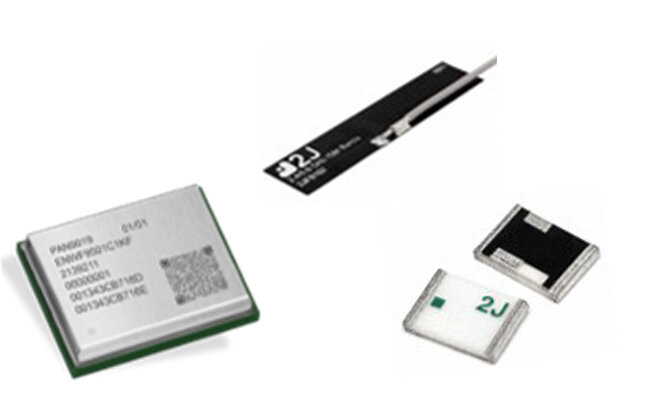

PAN9019

The PAN9019 is a dual band 2.4 GHz / 5 GHz 802.11 a/b/g/n/ac/ax Wi-Fi radio module with integrated Bluetooth BDR/EDR/Low Energy (LE) and optionally 802.15.4 radio, specifically designed for highly integrated and cost-effective applications.

2,4/5,0/6,0 GHz Flexi Antenne von 2J 2JF0102P

The 2JF0102P antenna is a flexible high efficiency embedded solution covering 2.4 GHz, 5.0 GHz and 6.0 GHz bands. The antenna can be easily mounted in most devices due to self-adhesive layer and small size. 2JF0102P is an omnidirectional, ground plane independent antenna. Cable and connector is upon request.

WiFi 6E / WiFi 7 SMD/Chip Antenne von 2J montiert auf Demoboard 2JL41

The 2JL41 antenna is a compact, surface-mount solution designed to support 2.4 GHz, 5.0 GHz, and 6.0 GHz ISM bands, covering frequencies from 2410-2490 MHz and 4920-7125 MHz. Made of ceramic material, it is easy to integrate due to its small size. The antenna operates efficiently with ground plane dependency and has a linear, omnidirectional radiation pattern. It supports WiFi, Bluetooth, and ZigBee applications.

10.1“ touch-monitor

• Size 5.0“, IPS-technology
• Size 10.1“, IPS-technology
• Resolution 1.280 x 800
• Brightness 550 cd/m², Contrast 800:1
• PCAP optically bonded
• Interfaces DisplayPort 1.2 / HDMI 1.4 and USB-C for touch
• Open frame, aluminum housing
• Designed for 24/7 operation
• Designed for medical and Industrial applications
• CE and FCC certified
• UL796, Rated V-0

Pressure sensors
Manufacturer: CF-Sensor, Micro Sensor

• CF-Sensor: cheap piezoresistive analogue and digital sensors PCB-MEMS-pressure sensors for non-corrosive gases or air
  as well as for liquids.


• Micro Sensor: wide range of piezoresistive pressure sensors
  and pressure-transmitter for industrial applications like industrial control and automation, level sensors and submersible probes for efficient tank level measuring.



Flow sensors
Manufacturer: CF-Sensor

• Gas-Flow sensor, air-flow sensor for industrial or home automation.

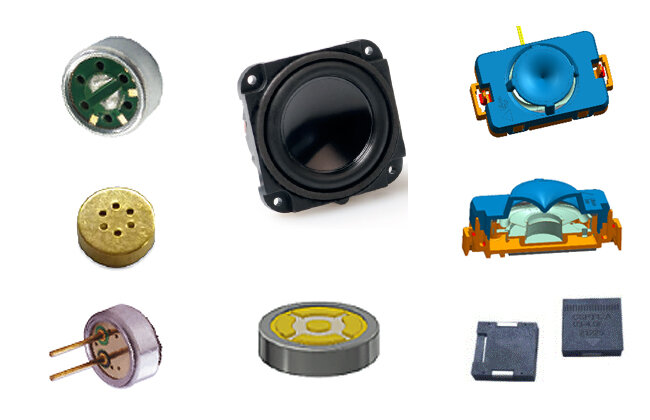

Microphones
Electret Condenser Microphone (ECM)
⇨ Voice and Sound Detection / Control

Sounders
Piezo and Magnetic Transducer & Piezo and Magnetic Buzzers
⇨ Acoustic Feedback, Loud Alarm

Loudspeakers
Full Capsuled Speakers and Full-range-speakers
⇨ Melody and Voice Reproduction (Voice Control)

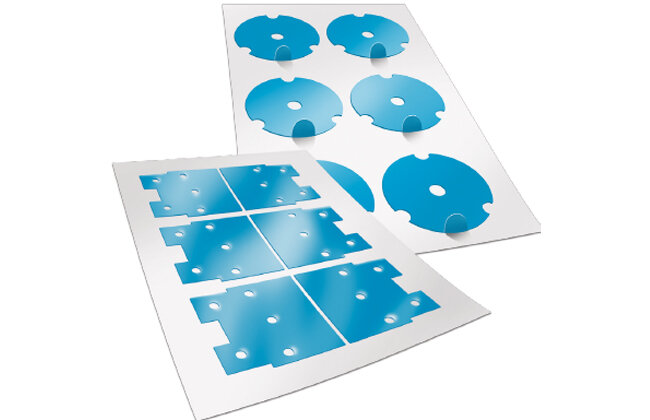

ThermalTAPE® is a thermally conductive double sided adhesive tape with a very high mechanical strength and good thermal transfer performance. It is made from a fiber glass base combined to ceramic nanoparticles. ThermalTAPE® uses an acrylic PSA Adhesive with superior adhesion properties and can be used on a wide variety of substrates such as aluminum, Plastics, PMMA, etc.

Features

• High mechanical and adhesive strength
• To attach heat-sinks to aluminum or
• FR4 PCBs, replacing screws,
  holders and fasteners
• Electrically insulating
• RoHS and REACH compliant
• Good thermal conductivity

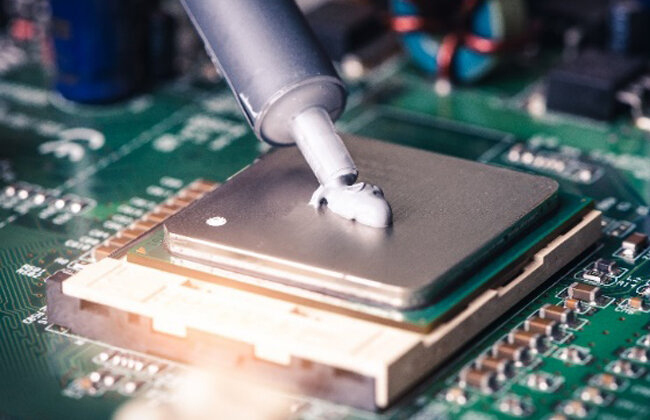

FORMAPad® is specially formulated to offer excellent wetting and minimum pump out property with tacky texture. Dispensable and screen printable consistency makes easy in production environment. Offers excellent stability over a wide temperature range with high thermal conductivity and low thermal resistance. It’s a high-performance thermal grease designed to meet the thermal, reliability and low-price requirements of high-end chipset, graphic processors trend ever-faster clock speeds. RoHS compliant and halogen-free.

Features

• High thermal conductivity (2.6 W/m-K),Tacky, Thixotropic paste
• Excellent wetting property
• RoHS compliant-halogen Free
• Thin bond line thickness <25 micron

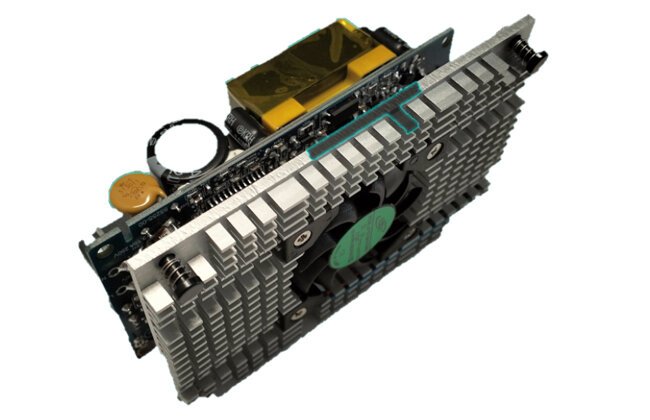

FRIWO Open-Frame Power Supply HERC175 with ADDA Fan

Advantages

• HERC line meets medical requirements of IEC60601-1
• Working at heights up to 5000 meters
• Protection 2x MOPP for both patient and operator safety
• Complaint with the hazard base standard IEC 62368-1
• Meets the 4th edition of the IEC 60601-1-2 standard for medical devices
• Forced cooling option

Other possible applications

• Medical Applications
• Industry
• Information Technology
• Audio/video
• Household Appliances

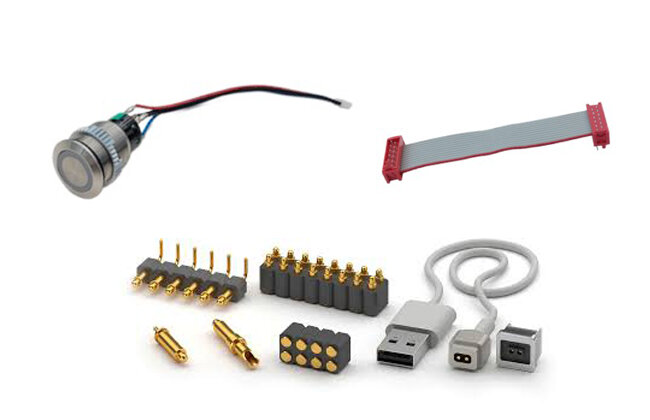

Cable Assembly

• Illuminated push-button incl. fixing nut
• Single wires
• 4-pin socket housing

Cable Assembly

• Ribbon cable
• Insulation displacement connector

POGO Contacts

• Spring test contacts
• Waterproof discrete spring test contacts
• Magnetic connectors and cable assemblies
• Connectors for mating pads
