Gigadevice GD-xD-W515-EVAL

The xD (Multidimension) series evaluation platform utilizes Multiple GD products, provides possibility of Multiple HW/SW combinations, and aims to support evaluation of Multiple application in one kit.

GD-xD-W515-EVAL including:
Main control board with GigaDevice
GD32W515PIQ6 MCU
GD30BC2416 BMIC
GD30LD1002 LDO
GD25Q128E NOR Flash
GD-Link Debugger. etc.

Fingerprint Board with GigaDevice GSL6157 Fingerprint sensor

• Display board with 0,96-inch OLED

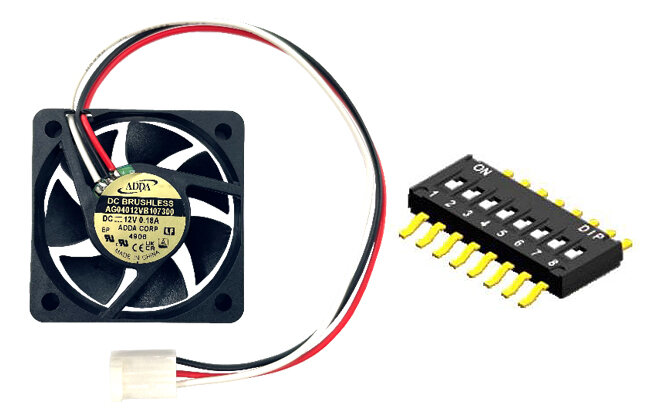

Fan for cooling components
Manufacturer: ADDA

Part number: AG04012VB107300
Dimensions: 40 x 40 x 10 mm
Max. air volume: 10 CFM
Rated voltage: 12 V DC
Output signal: Revolution Indication

DIP-Switch
Manufacturer: Diptronics

Part number: DHN-08F-T-V

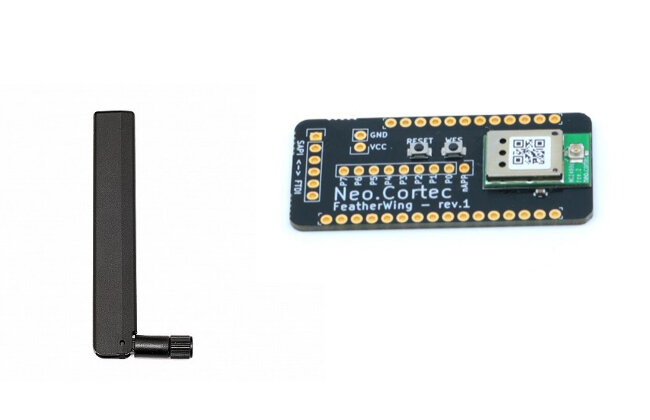

Neo Cortec Neo Mesh Module

The unique NEOCORTEC ultra low power Ad- Hoc Wireless Mesh Networking Protocol is offered for both 2.4GHz as well as sub 1GHz frequency bands in a series of pre-approved modules. The modules are well suited for a broad range of applications, cost efficient and easy to integrate into the target product. The modules share the same footprint, which means that the target product does not need to change to support that full range of frequency bands.

Dipole 5G Antenne 2J - 2JW1183-C952B

The 5G NR High Performance SMA-M Connector Mount Antenna 2JW1183-C952B combines high performance with full bandwidth coverage for 5G NR, 4G LTE and 3G/2G/CDMA cellular spectrums and the smallest antenna design on the market. The innovative hinged swivel design allows the antenna to be positioned in a straight, right or 45-degree angle so it can be rotated into the direction with the most signal strength and reduce interference with other antennas nearby.

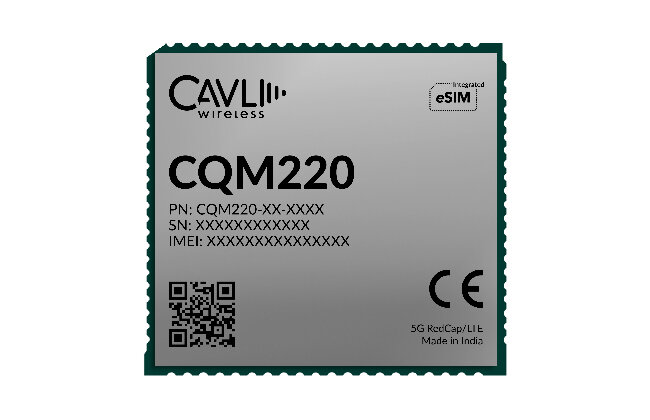

5G Module Cavli - CQM220

CQM220 is a 5G RedCap module compatible with 3GPP release 17 standards for IoT and M2M applications. It delivers maximum data bandwidth upto 226Mbps in downlink and 121Mbps. The module is available in LCC+LGA, mPCIe and M.2 form factors. CQM220 also supports optional in-built GNSS making it ideal for tracking applications. The module comes with OpenWrt based OpenSDK, ensuring application-level coding for specific without requiring an external host MCU. CQM220 is perfect for applications that require higher data throughput with location information and global deployments.

2JW1683 (2J Antennas)

The 2JW1683 antenna is a high-performance embedded solution designed to cover 2.4 GHz, 5.0 GHz, and 6.0 GHz frequency bands, making it ideal for Wi-Fi and other wireless applications. With a compact design and self-adhesive backing, it can be easily mounted into a variety of devices. The 2JW1683 is omnidirectional and ground-plane independent, ensuring consistent performance regardless of installation conditions. Cable length and connector type can be customized upon request to suit specific device requirements.

The 2JW1683 antenna is a high-performance embedded solution ts.

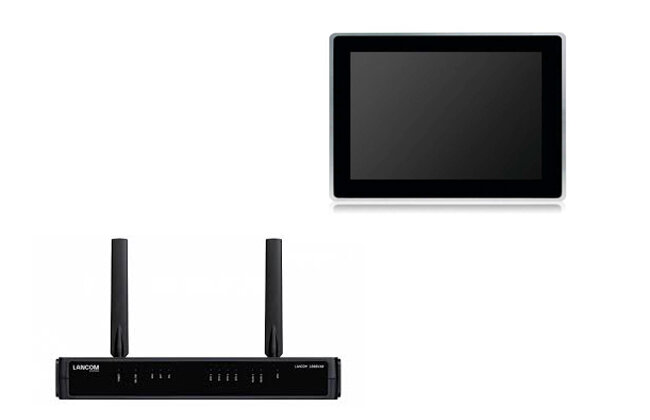

15.6“ touch-monitor

• Size 15.6“, IPS-technology
• Resolution 1.920 x 1.080
• Brightness 500 cd/m², contrast 1.000:1
• PCAP optically bonded
• Interfaces DisplayPort 1.2 / HDMI 1.4 and USB-C for touch
• Full aluminum housing
• Designed for 24/7 operation
• Designed for medical and Industrial applications
• CE and FCC certified
• UL796, rated V-0

IR-Sensor (Pyrosensoren, PIR)
Manufacturer: NICERA

• Analog and Digital types (with I2C or UART interface (evaluation boards available)
• TO-5 housing, 2 and 4 elements, SMD available

Applications: movement detector and presence detector

Environmental air quality sensing solutions
Manufacturer: Cubic, Panasonic

• Applications:  HVAC system, IAQ monitor,
• Air purifier, Agriculture, wine/beer, cellar,
• Portable & wearable IAQ detector

Radar sensors:
Manufacturer: RFbeam, Nisshinbo Micro Devices, OmniPreSense

Frequency range: 24 GHz – 61 GHz Module types:

• Analog modules
• Digital modules with internal signal processing
• Measurement of speed, distance and angle possible

Applications:

• Movement detectors for lighting
• Home security (burglar alarm)
• Traffic control
• Automated guided vehicle system

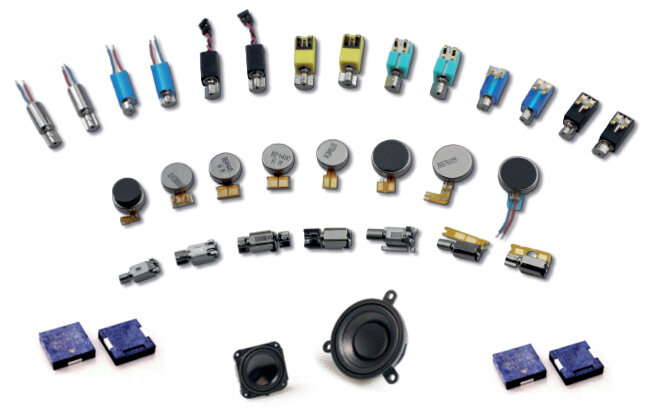

Vibration Motors
Cylinder-, Coin-, SMD- and Linear Vibration Motors
⇨ Haptic Feedback, Silent Alarm

Sounders
Piezo and Magnetic Transducer & Piezo and Magnetic Buzzers
⇨ Acoustic Feedback, Loud Alarm

Loudspeakers
SMD-. Micro- and Full-range-speakers
⇨ Melody and Voice Reproduction (Voice Control)

POLICap is an innovative bi-component 2K resin, expertly designed for encapsulating LEDs and electronic components. It stands out for its fast-curing capability at room temperature, ensuring a smooth, aesthetically pleasing finish, and excellent thermal expansion properties.
The defining feature of POLICap is its exceptional transparency. This transparency maintains the intensity of the luminous flux emitted by POLICap 540 TRANSPARENT POLYURETHANE-BASED ENCAPSULATION RESIN LEDs, making it an ideal choice for applications where light output is crucial. Furthermore, it provides robust protection for components under adverse operating conditions, ensuring both functionality and longevity.
Ideal for a range of electronic applications, POLICap combines quick curing, aesthetic quality, and outstanding transparency with effective protection, making it an optimal solution for LED encapsulation.

Features

• Excellent light transmission
• Flexibility to compensate for thermal expansion of printed circuits and components
• High thermal dissipation
• Guarantees IP69 protection level

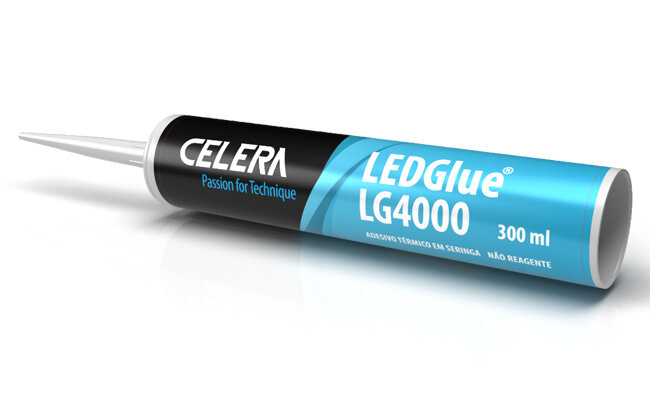

LEDGlue® LG4000 is a silicon based, mono-componente, thermally conductive adhesive which provides superior thermal performance, offering low contact resistance and long-life durability. LEDGlue® LG4000 is RoHS and Reach compliant

Features

• Medium viscosity
• Mono component
• Short hardening cycle
• Superior adhesion

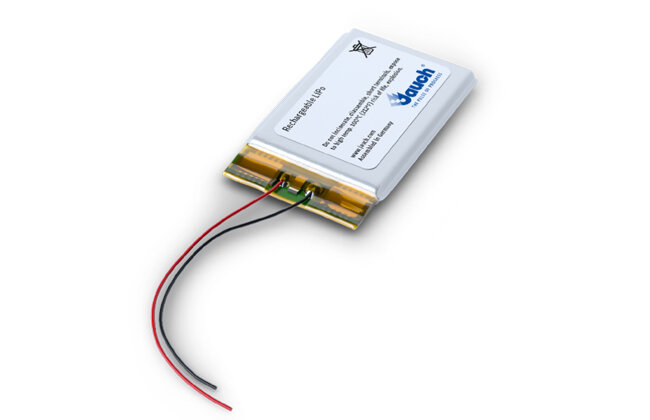

Jauch Rechargeable Lithium Polymer Batteries (E.g.: Jauch LP503759JU)

Advantages

Cells are light, thin and are available in various forms and sizes. Soft “Pouch” cases are easier and cheaper to produce compared to the hard Li-Ion cases.

Other possible applications

• Smoke detectors
• Battery powered tools
• Smartphones
• Watches
• Tracking devices
• Traffic management
• Smart grids
• Agriculture
• Vehicle fleet management
• IoT applications such as smart waste management systems

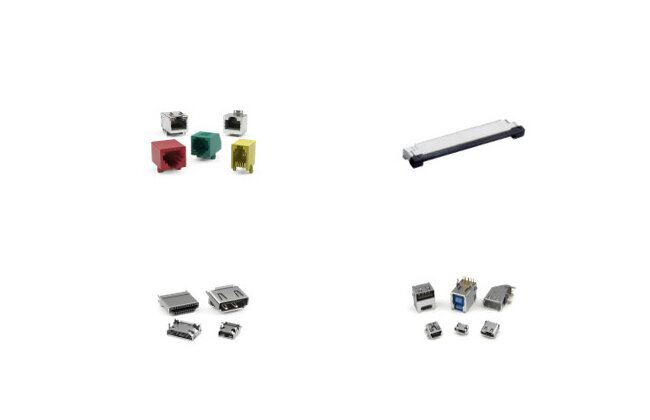

FFC/FPC Connectors

• SMT (Surface Mount Technology)
• Pitch sizes (e.g. 0.5 mm, 1.0 mm)
• Top and bottom contact

RJ45

• Sizes from 4P2C to 10P10C
• Single, interconnected and stacked jacks
• Options for integrated magnets
• Metal shielding options
• Wide range of LED color options
• Speeds up to 40 GBs

HDMI

• Up to 5 Gbps on a single interface
• Multiple mounting options
• Fully shielded for ESD protection
• Compact SMT design with 0.50 mm (0.019") pitch

USB

• USB-versions: 2.0, 3.0, 3.1, 3.2, USB-C, USB4 40 Gbps
