Measurement and IO-Link

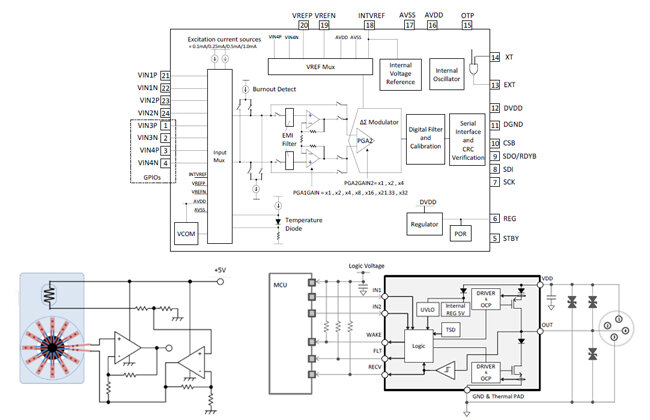

NA2202/03/04 → Analog front end 16/20/24 Bit ⊿Σ A-D convertor

• Select to useful sensors by Internal 4 channel multiplexer setting
• Able to reduce of board space, because small PKG(EQFN-24)
• Possible to GND sensing, because negative power supply

NL6012 → Operational Amplifier

• Precision-trimming and zero-drift enable amplification without error over a industry temperature range
• Built-in EMI filter to prevent malfunction due to wireless radio waves. Ideal for various sensors

ND1160 → IO-Link® Device Transceiver

The ND1160 transceiver implements the IO-Link® interface for industrial bidirectional, point-to point communication. The ND1160 is guaranteed that capable Current: 200mA and operating Voltage: 8.5V to 36V. The ND1160 can be set operating mode: high-side, low-side and push-pull by input pin logic.

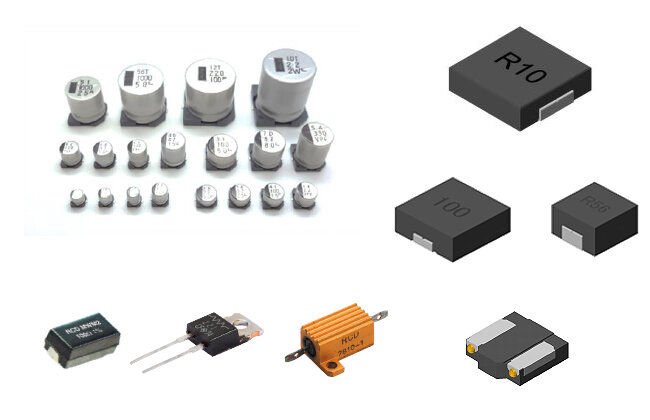

SunCon capacitor

• Low-profile designs with heights up to 4.5 mm
• Long-lasting capacitors with a lifespan of up to 10,000 hours
  at 105 °C
• High-temperature models up
  to +150 °C
• Components with a diameter greater than 6.3 mm are available with a vibration-resistant housing that withstands 30 G
• Custom products are available upon request

ABC-ATEC molded inductor

HC Series – Designed for low-profile applications, with heights up to 1.0 mm Size: 3x3 mm – 7x7 mm, Inductance: 0.22 µH – 6.8 µH, Current: 2.7 A – 21.8 A; HE Series – Extensive selection with high compatibility
Size: 4x4 mm – 17x18 mm, Inductance: 0.1 µH – 100 µH, Current: 2.2 A – 80 A

RCD heat sink resistor

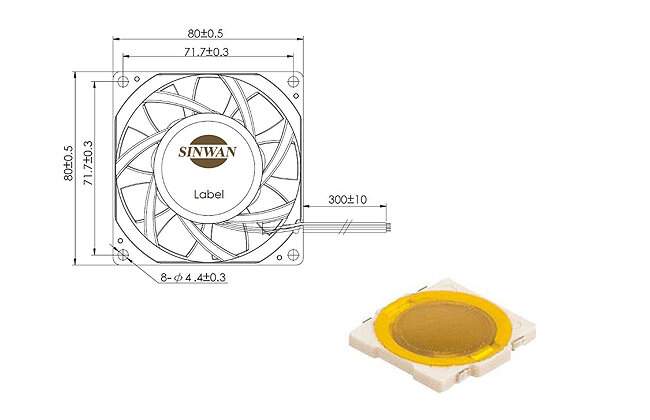

Fan for cooling power components

Manufacturer: SINWAN
Part number: SD8038PT-24HHHWB(FP68)
Dimensions: 80 x 80 x 38 mm,
Max. air volume: 93 CFM
Rated voltage: 24 V
Protection class: according IP68
Polarity protection, blockage protection
Bearing: 2 ball bearing
Speed control: PWM
Output signal: revolution indication

Push-button T3BL Diptronics

3,7 mm x 3,7 mm
H = 0,35 mm
Tactile Switches SMT type

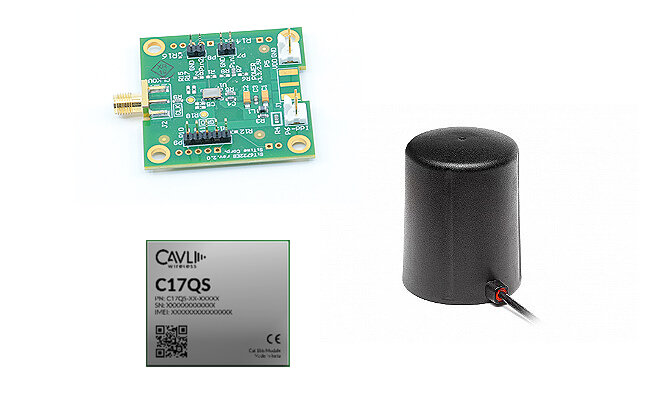

Elite Platform Super TCXO, EVAL Board, SiTime - SIT6722EB

The SiT6722EB evaluation board (EVB) is designed for use with SiTime’s Elite Super-TCXOs in the 10-pin, 5.0 x 3.2 mm ceramic packages. It enables the evaluation of key functionalities of these precision SuperTCXOs in all three configuration modes including TCXO, VCTCXO and DCTCXO with I2C, VCTCXO, DCTCXO

LTE Antenna "Shaker" 2J - 2J7724M

The 2J7724M antenna is a high-performance magnetic mount solution covering cellular and LTE bands, including 698-960 MHz, 1710-2170 MHz, and 2500-2700 MHz. It is ground plane dependent and designed for outdoor applications, offering IP67, IP69, and IK09 certifications. The antenna has a customizable cable and connector, making it versatile for different installation needs. With compact dimensions, it is ideal for various environments.

Cat 1bis Modul Cavli - C17QS

The C17QS modules use their LTE Cat 1bis technology and optional GNSS tracking capabilities to simplify global connectivity and tracking solutions. With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in Worldwide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensure prolonged life cycles in both battery powered and externally powered use cases.

5“ touch-PC (ARM)

• Size 5.0“, IPS-technology
• i.MX8M Plus (Quad-Core), 2GB RAM
• 8GB eMMC, 2MB NOR-Flash
• Resolution 850 x 480
• Brightness 550cd/m², contrast 1.000:1
• PCAP optically bonded (Microchip mXT640U)
• Interfaces: USB-A, I/O connector, 2x Gbit/Ethernet
• Full aluminum housing
• Designed for 24/7 operation
• Designed for medical and industrial applications
• CE and FCC certified

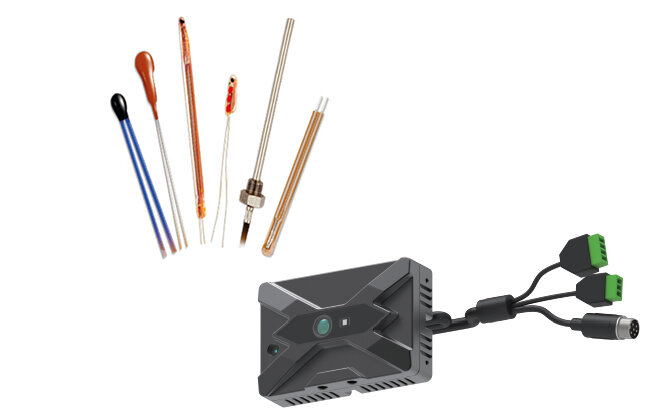

NTC and assembled temperature sensors
Manufacturer: SEMITEC, TEWA

• Small tolerances in R25 (0.5%) and B-value
• Many different shapes of housing
• Customer-specific R-T-table possible
• Customer-specific housing,
  lead wire and connector possible
• Waterproof types available
• With cable ties for connecting to pipes
• PTC also available

ToF-Camera modules
Manufacturer: SPARC (S4sensors)

• Equipped with 320*240 resolution ToF sensor
• Integrate a powerful application processor
• Supports TCP/IP industrial ethernet interface port
• RGB image and depth data
• Adjustable range and frame rate

Applications
Industrial Vision, Security Monitor, Industrial Safety Area Protection, Robot Obstacle Avoidance

HBC Crane Control
With SMD Vibration Motor
⇨ Haptic Feedback

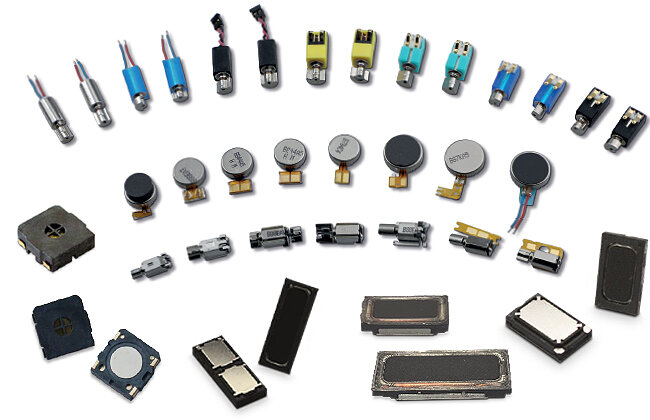

Vibration Motors
Cylinder-, Coin-, SMD- and Linear Vibration Motors
⇨ Haptic Feedback, Silent Alarm

Loudspeakers
SMD- and Micro Speakers
⇨ Acoustic Feedback

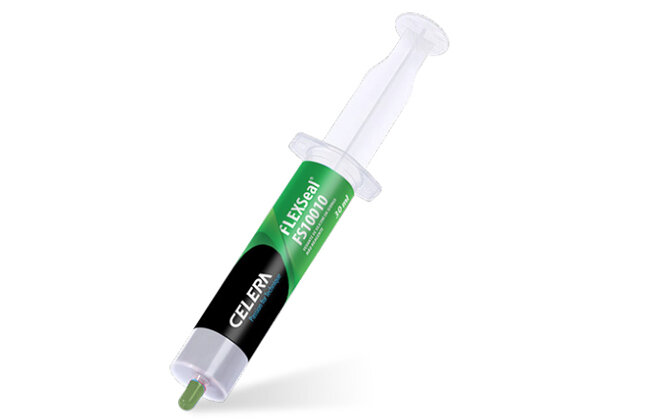

FlexSEAL is a silicone type adhesive which cures after absorbing moisture in the air, at room temperature, with no need for heat curing. It has good adhesive sealing performance and outstanding protection in harsh operational conditions.

Features

• Protects against moisture, dirt and other atmospheric composition
• Relief for thermal shock and mechanical stress caused by vibration
• Excellent electrical insulation performance
• Outdoor aging, excellent service life up to 20-30 years
• Within the -60-260 °C temperature range, it has stable mechanical and electrical properties
• Fire-resistant

FlexCOAT FC60 is a high-quality flexible, transparent, ECO FRIENDLY Acrylic Conformal coating for LED Lighting. FlexCOAT FC60 is approved by C DOT, and it conforms to MIL Standard: MIL - I - 46058C Type AR. It ensures protection for LED Lighting and components against moisture, Oxidation, fungus etc., in humid conditions. It is easy to apply and fast drying and has good flexibility. Servicing is easy as the coating is readily solderable. FlexCOAT FC60 has high dielectric strength ad it provides protection against high voltage arcing and corona shorts.

Features

• Protects LED lighting from higher humidity, salty weather, conductive dust, oxidation, corrosion, rusting and fungus, etc.
• Provides transparent hard film coating on the surface of the LED lights and circuits
• Improves the functioning of LED lights
• Does not affect the luminosity of LED Lights
• Reduces service calls and repairs

FRIWO Open-Frame Power Supply OF250

Advantages

• High resistance to vibration
• Shock and temperature
• Maximum efficiency in minimal installation space
• Peak values for efficiency and no-load losses
• Minimal leakage current
• Adaptable open design for fast customer-specific modifications

Other possible applications

• Industrial systems
• Medical applications tools
• Gate and garage door drivers
• Customized solutions

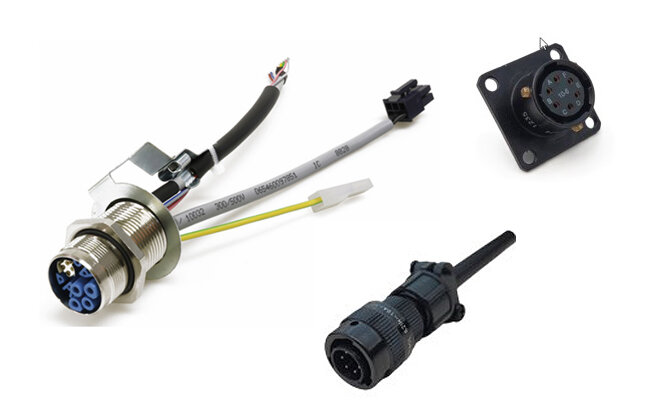

Cable Assembly

• M23 hybrid plug connector
• Control cables 4x0.14mm² shielded
• Single strands
• Blade receptacle + insulating grommet
• 6- and 10-pin socket housing
• EMC bracket with shield clamp for EMC shielding

Connectors according to MIL standard

• Circular connector
• Military standard
• Robustness
• Reliability
• Versatile contact configuration
